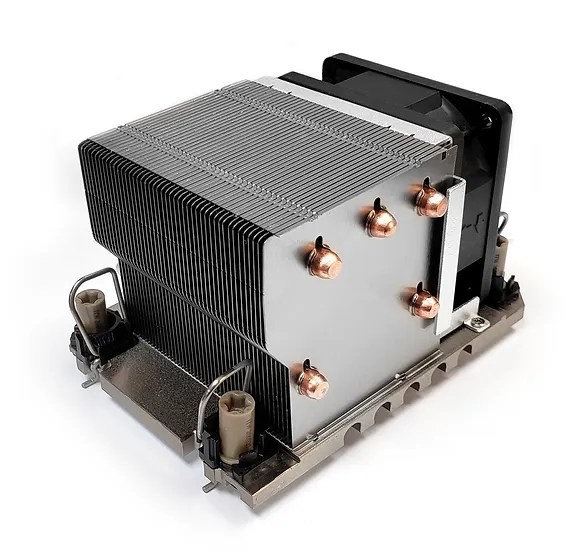

N11
CPU SUPPORT
Intel
CPU SOCKET
FCLGA 4189-4/5 (Socket P4/P5)
APPLICATION
2U & UP
MAXIMUM POWER
270 W

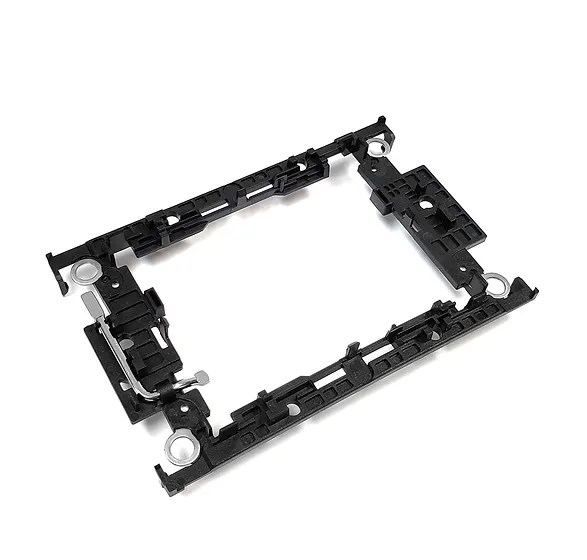

* For Intel® 3rd Gen. Xeon Scalable Processor(code name Copper Lake, Socket LGA4189-5), DY-PK-4189-P5 Package Carrier needs to purchase separately.
Additional Information
CPU Support | Intel® 3rd Gen. Xeon Scalable Processor (code name Ice Lake and Copper Lake) |
CPU Socket | FCLGA 4189-4/5(Socket P4/P5) |
Screw Type | #8-32 |
Installation Torque | 8 in-lb |
Solution | 2U Server and Up |
Dimensions | 113.0 x 82.0 x 66.0 mm |
Weight | 460 g |

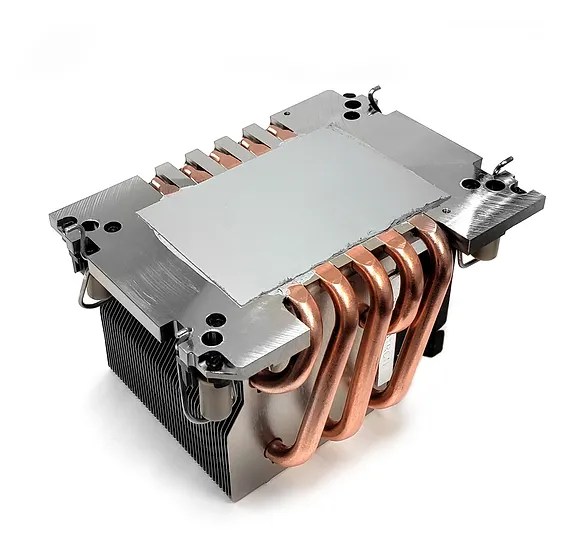

Material | Aluminum Fin stack with Heat Pipe embedded |
Fan Dimension | 60 x 60 x 25 mm |
Speed | Up to 8500 RPM |
Rated Voltage | 12V |
Bearing | 2 Ball Bearing |
Power | At Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 2.52 W At Duty Cycle 100%: 9.6 W |
Air Flow | At Duty Cycle 0~20%: 9.86 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 49.32 CFM |
Noise Level | At Duty Cycle 0~20%: 19.3 dBA At Duty Cycle 50%: 37.9 dBA At Duty Cycle 100%: 54.3 dBA |
Air Pressure | At Duty Cycle 0~20%: 0.86 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 21.5 mm-H2O |
Lead Wire Pin Out | Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
Thermal Grease | Shin-Etsu 7762 or Equivalent |
Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
