A52
CPU SUPPORT
AMD
CPU SOCKET
AMD Socket |
SP6/TR5
APPLICATION
1U
MAXIMUM POWER
140 W
Additional Information
| CPU Support | AMD® EPYC™ Processor |
| CPU Socket | SP6/TR5 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 1U Server and Up |
| Dimensions | 120 x 82 x 28.6 mm |
| Weight | 500g |

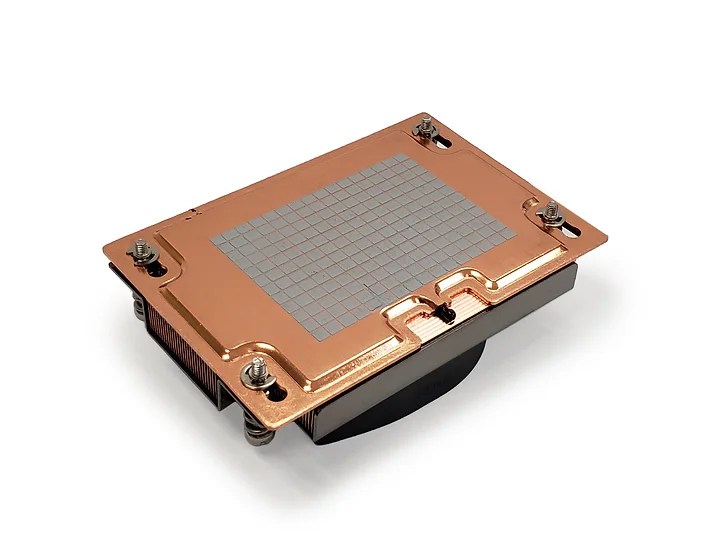

| Material | Copper1100 Heatsink with Vapor Chamber Base |
| Fan Dimension | Ø80 x 13 mm |
| Speed | At Duty Cycle 20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM |
| Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.70 W At Duty Cycle 100%: 23.45 W |
| Bearing | Ball Type, Double |
| Rated Voltage | 12V |
| Air Flow | At Duty Cycle 0~20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level | At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
| Air Pressure | At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
