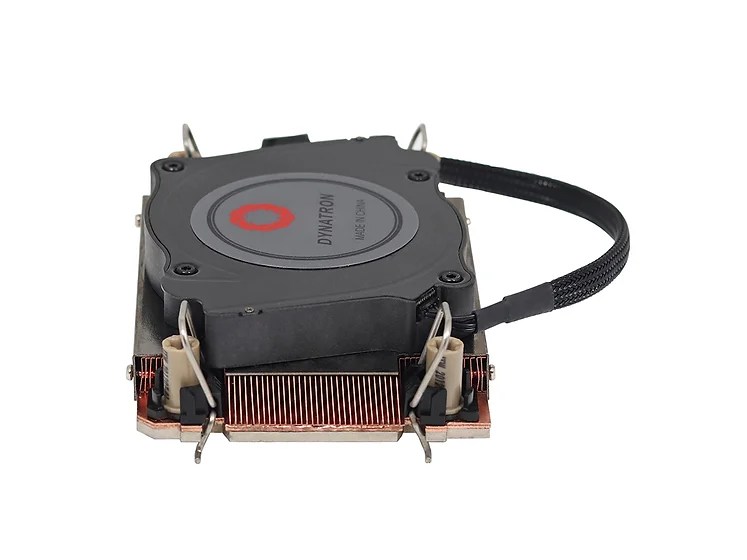

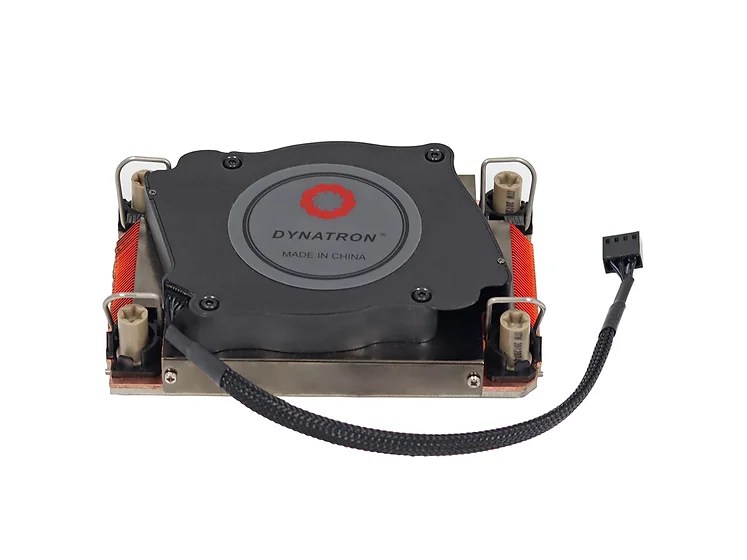

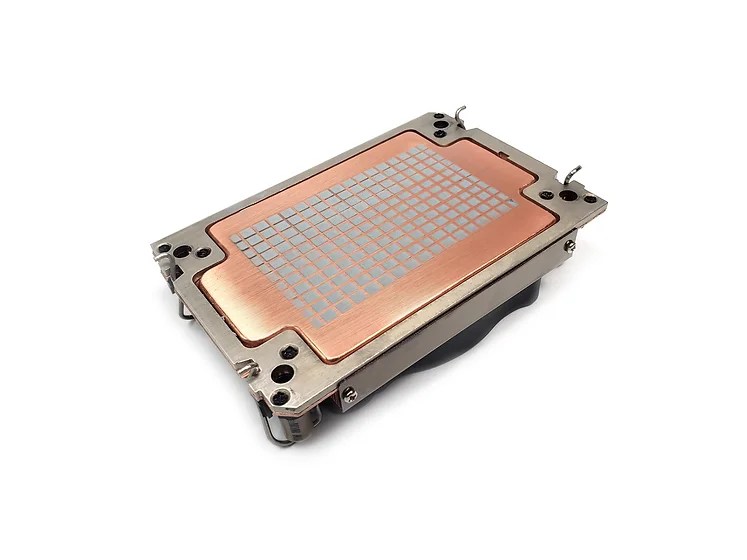

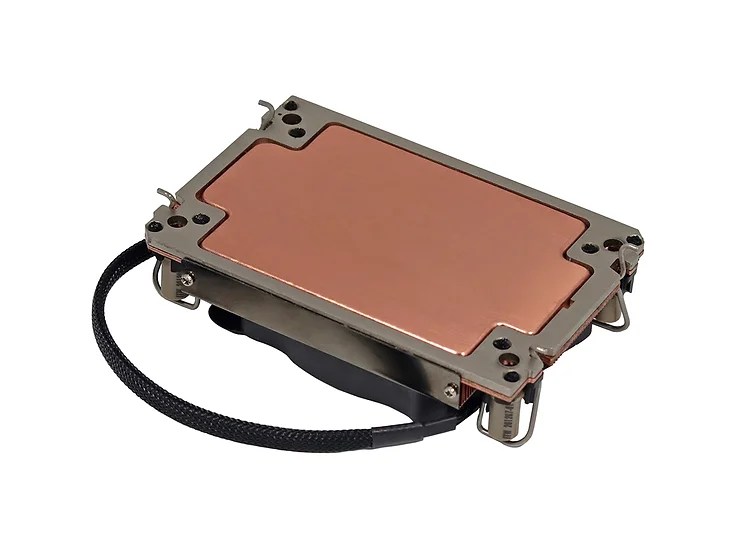

Air cooling

S3

CPU SUPPORT
Intel

CPU SOCKET

LGA4677

APPLICATION
1U

MAXIMUM POWER

205 W

Note:

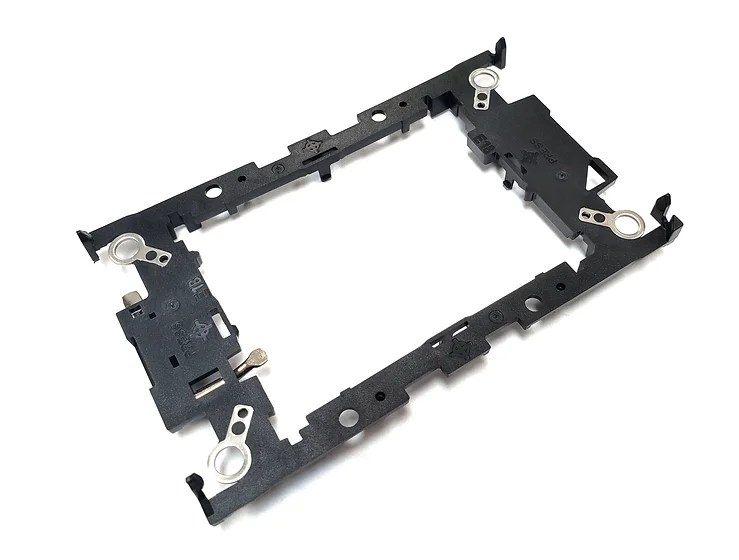

Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier. The E1C Package Carrier is not included but is available upon request.

To find out which Package Carrier corresponds to your processor, please visit the official Intel link for more information. Click here to see the guideline example.

Additional Information

CPU Support Intel
CPU Socket FCLGA 4677
Screw Type #8-32
Installation Torque 8 in-lb
Solution 3U Server and Up
Dimensions 128 x 91 x 110 mm
Weight 659.3 g
Material Aluminum Stacked-Fin with Heat Pipes directly contact CPU
Fan Dimension 80 x 80 x 38 mm
Speed At Duty Cycle 0~20%: 1300± 200 RPM

At Duty Cycle 50%: 2450± 10% RPM

At Duty Cycle 100%: 4500±10% RPM

Rated Voltage 12V
Bearing Double Ball
Power At Duty Cycle 0~20%: 1.20 W

At Duty Cycle 50%: 2.64 W

At Duty Cycle 100%: 9.00 W

Air Flow At Duty Cycle 0~20%: 22.23 CFM

At Duty Cycle 50%: 41.90 CFM

At Duty Cycle 100%: 76.95 CFM

Noise Level At Duty Cycle 0~20%: 23.95 dBA

At Duty Cycle 50%: 37.71 dBA

At Duty Cycle 100%: 50.91 dBA

Air Pressure At Duty Cycle 0~20%: 1.068 mm-H2O

At Duty Cycle 50%: 3.794 mm-H2O

At Duty Cycle 100%: 12.798 mm-H2O

Lead Wire Pin Out Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
Thermal Grease Shin-Etsu 7762 or Equivalent
Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
