Air cooling
You are here:

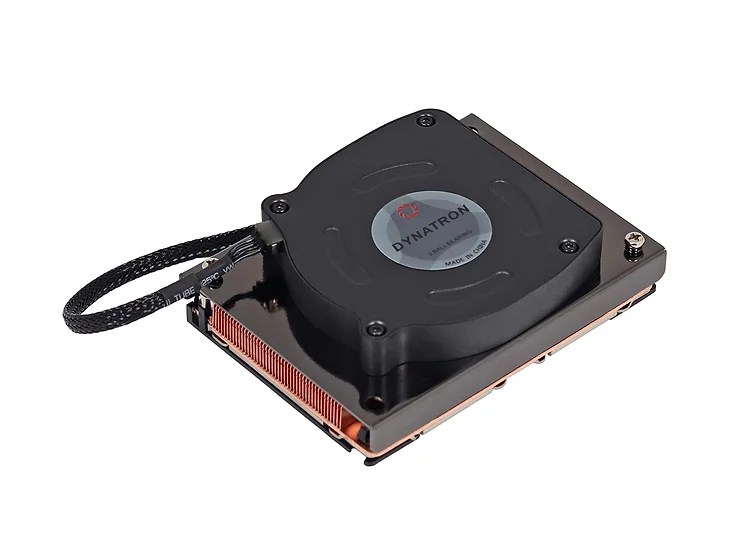

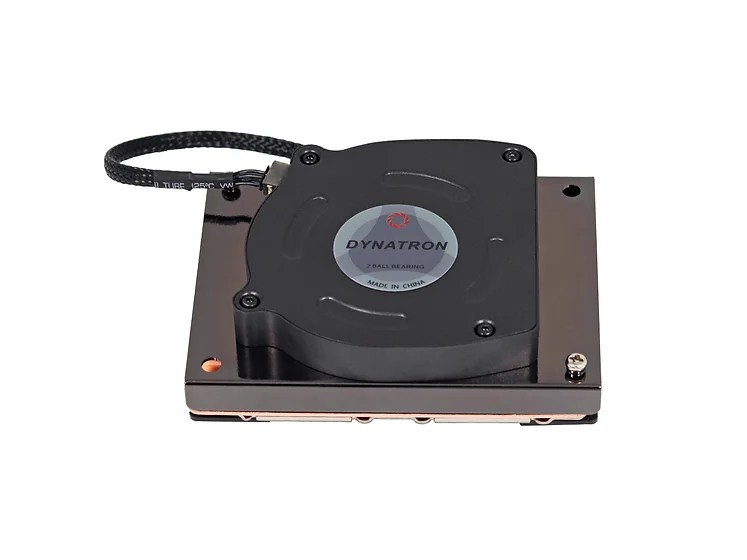

B22
CPU SUPPORT
Intel
CPU SOCKET
LGA3647/NARROW
APPLICATION
1U
MAXIMUM POWER
205 W
Additional Information
| CPU Support | Intel® Xeon ® Platinum / Gold / Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake) |
| CPU Socket | FCLGA 3647 Narrow ILM |
| Screw Type | M4 |
| Installation Torque | 12 in-lb |
| Solution | 1U Server and Up |
| Dimensions | 108 x 81 x 28 mm |
| Weight | 500g |
| Material | Copper1100 Heatsink with Vapor Chamber Base |
| Fan Dimension | Ø80 x 13 mm |
| Speed | At Duty Cycle 20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM |
| Bearing | Ball Type, Double |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.70 W At Duty Cycle 100%: 23.45 W |
| Air Flow | At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level | At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
| Static Pressure | At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.8 mm-H2O |
| Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
