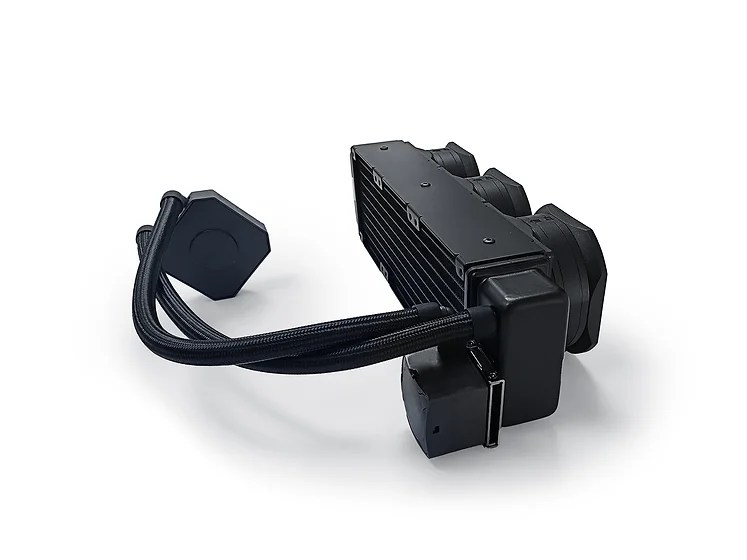

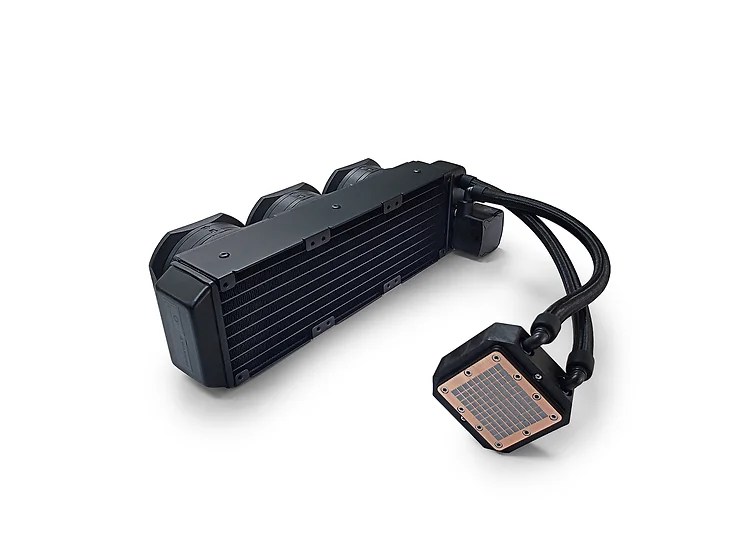

L44
CPU SUPPORT
Ampere® Altra® Family
CPU SOCKET
LGA 4926
APPLICATION
2U
MAXIMUM POWER
250W
Additional Information
| CPU Support | Ampere® Altra® Family |
| CPU Socket | LGA 4926 |
| Solution | 2U Server and Up |
| Dimension | 80 x 80 x 38 mm |
| Cold Plate Dimension | 64.5 x 64.5 x 23.3 mm |
| Radiator Dimension | 305 x 83.5 x 82 mm |
| Bearing | Double Ball |
| Rated Voltage | DC 12V |
| Rated Speed | At Duty Cycle 0~20%: 2400± 200 RPM
At Duty Cycle 50%: 4800± 10% RPM At Duty Cycle 100%: 8000±10% RPM |
| Input Power | At Duty Cycle 0~ 20%: 1.20 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Maximum Airflow | At Duty Cycle 0~20%: 32.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Rated Static Pressure | At Duty Cycle 0~20%: 3.45 mm-H2O
At Duty Cycle 50%: 13.6 mm-H2O At Duty Cycle 100%: 38.3 mm-H2O |
| Acoustical Noise | At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA |
| Lead Wire Pin Out | Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu X23-8079-2 Pre-Printed |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
