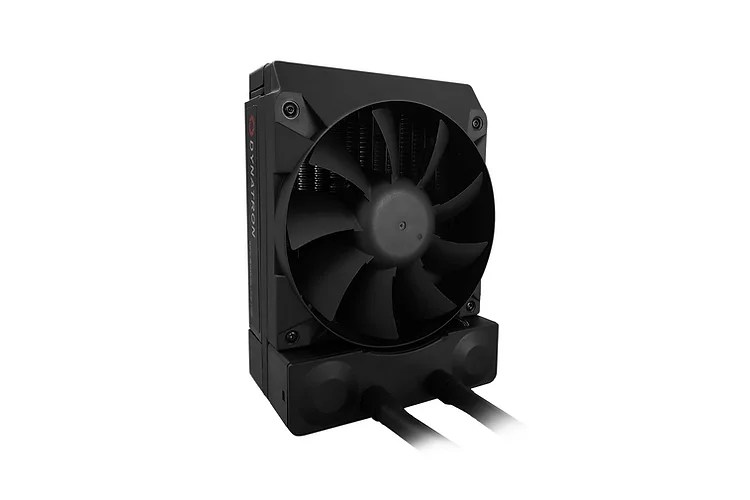

L13
CPU SUPPORT
Intel
CPU SOCKET
Intel Socket |
LGA3647/NARROW
APPLICATION
4 U/Workstations
MAXIMUM POWER
Intel: 205 Watts
Additional Information
| CPU Support | Intel |
| CPU Socket | Socket FCLGA3647 |
| Screw Type | M4 |
| Installation Torque | 12 in-lb |
| Solution | 4U Workstation |
| Dimensions | 165mm x 120mm x 96mm |
| Fan Dimension | 120mm x 120mm x 38mm |

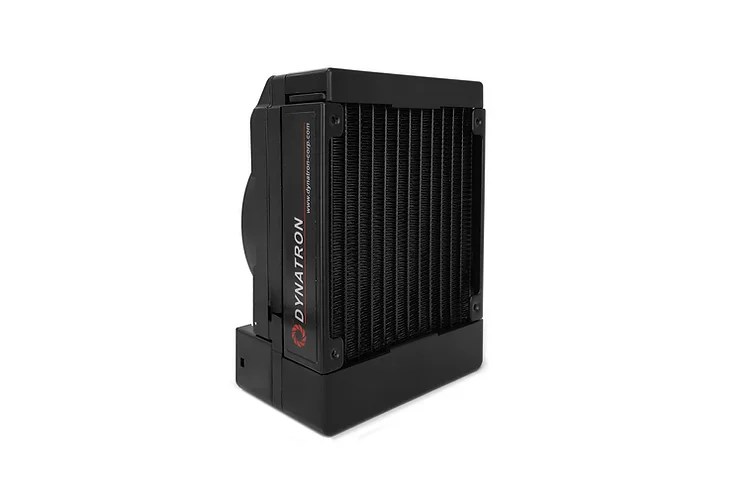

| Radiator Dimension | 165.0 x 120.0 x 29.0 mm |

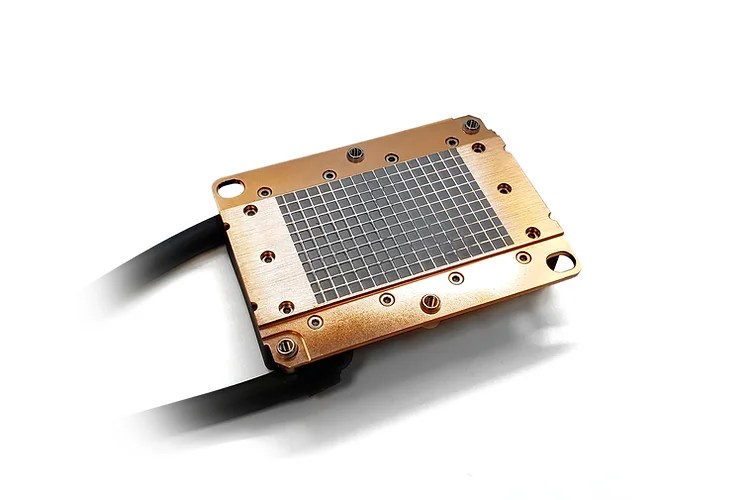

| Cold Plate Dimension | 108.0 x 80.0 x 24.5 mm |
| Speed | At Duty Cycle 20%: 900±200 RPM At Duty Cycle 50%: 1500±200 RPM At Duty Cycle 100%: 2300±10 RPM |
| Bearing | Liquid State Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.0 W At Duty Cycle 100%: 4.9 W |
| Air Flow | At Duty Cycle 20%: 34.8 CFM At Duty Cycle 50%: 58.0 CFM At Duty Cycle 100%: 88.93 CFM |
| Noise Level | At Duty Cycle 20%: 17.3 dBA At Duty Cycle 50%: 28.4 dBA At Duty Cycle 100%: 37.7 dBA |
| Air Pressure | At Duty Cycle 0~ 20%: 0.79 mm-H2O At Duty Cycle 50%: 2.20 mm-H2O At Duty Cycle 100%: 5.17 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+)Pin3- (Tachometer output) Pin4- (PWM Control) |

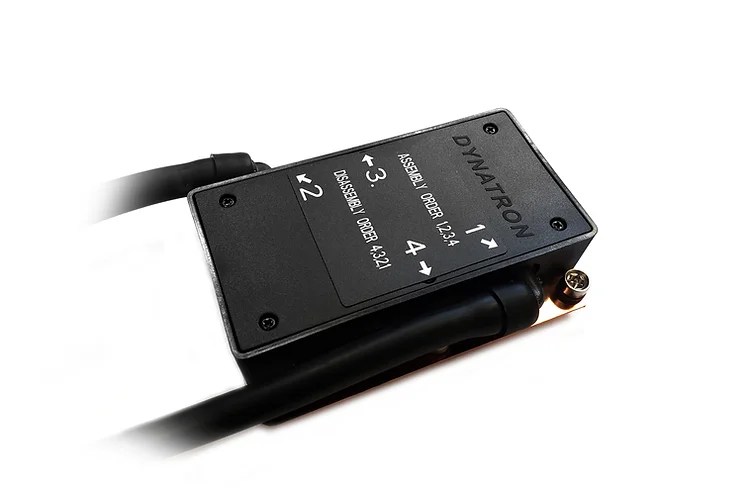

| Water Pump | Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
