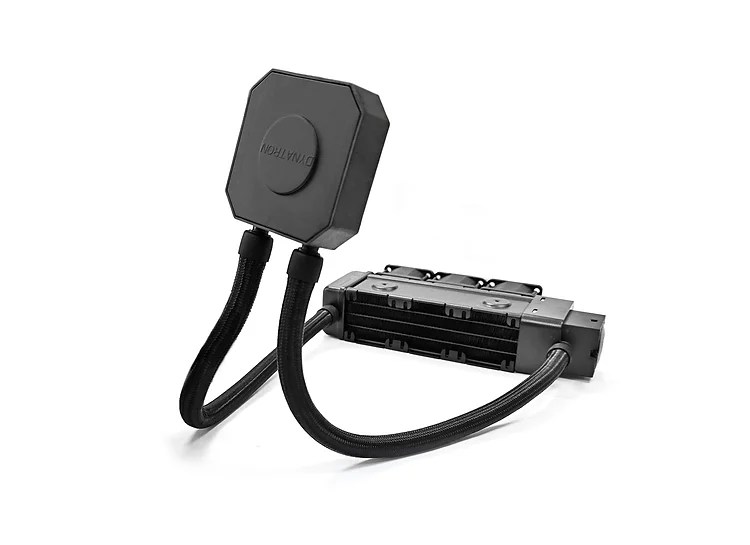

L43
CPU SUPPORT
Ampere® Altra® Family
CPU SOCKET
LGA 4926
APPLICATION
1U
MAXIMUM POWER
250W
Additional Information
| CPU Support | Ampere® Altra® Family |
| CPU Socket | LGA4926 |
| Solution | 1U Server and Up |
| Dimension | 40 x 40 x 28 mm |

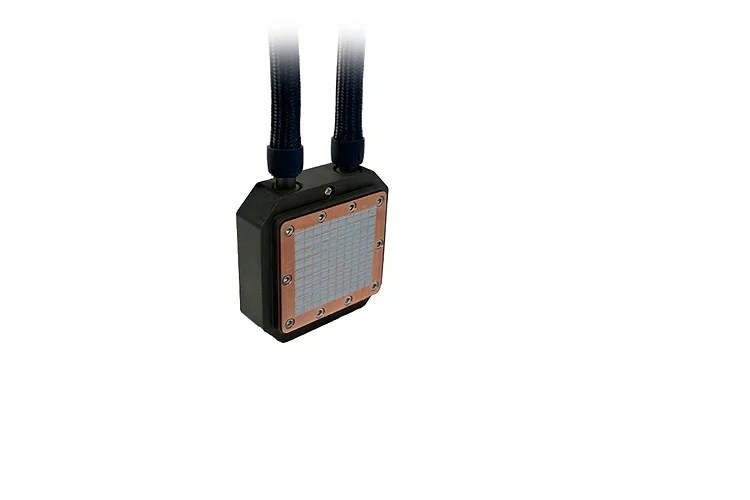

| Cold Plate Dimension | 64.5 x 64.5 x 23.3 mm |
| Radiator Dimension | 188 x 74 x 40 mm |
| Bearing | Double Ball |
| Rated Voltage | DC 12V |
| Rated Speed | At Duty Cycle 0~20%: 3300±200 RPM At Duty Cycle 50%: 15000±10% RPM At Duty Cycle 100%: 26000±10% RPM |
| Input Power | At Duty Cycle 0~20%: 0.72 W At Duty Cycle 50%: 6.0 W At Duty Cycle 100%: 22.8 W |
| Maximum Airflow | At Duty Cycle 0~20%: 4.74 CFM At Duty Cycle 50%: 21.53 CFM At Duty Cycle 100%: 37.32 CFM |
| Rated Static Pressure | At Duty Cycle 0~20%: 1.612 mm-H2O At Duty Cycle 50%: 33.30 mm-H2O At Duty Cycle 100%: 100.06 mm-H2O |
| Acoustical Noise | At Duty Cycle 0~20%: 19.35 dBA At Duty Cycle 50%: 52.23 dBA At Duty Cycle 100%: 64.17 dBA |
| Lead Wire Pin Out | Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu X23-8079-2 Pre-Printed |
| Life- Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
