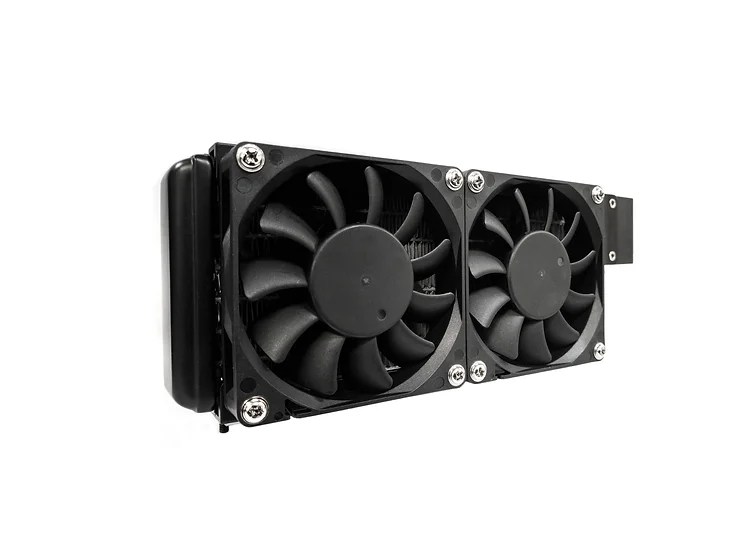

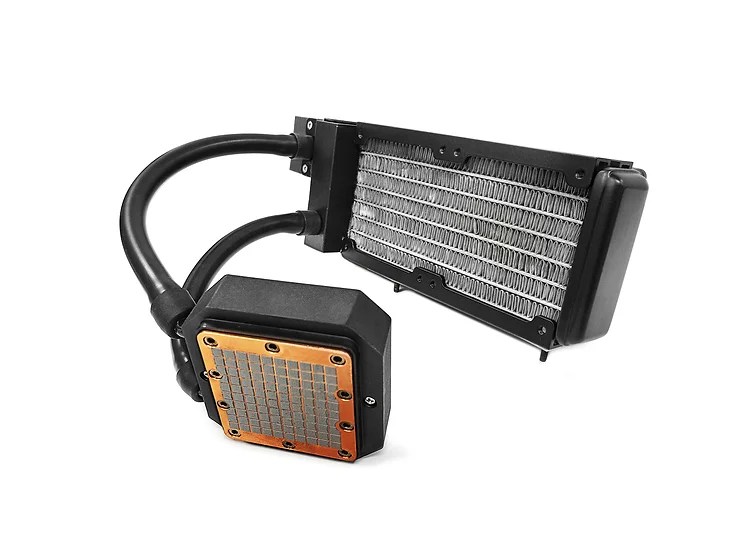

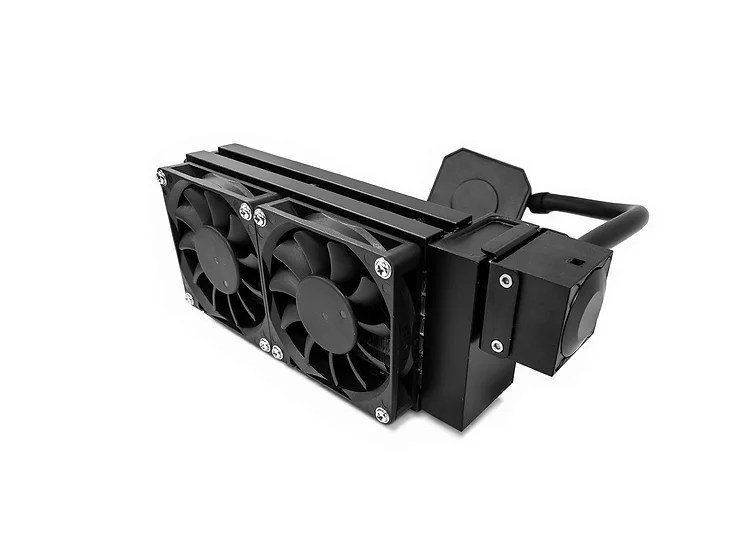

L19
CPU SUPPORT
Intel | AMD
CPU SOCKET
Intel Socket |
LGA1851/1700, LGA1200/115X
LGA2011/2066/SQUARE
LGA1356/1366
AMD Socket |
AM4/AM5
FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1
APPLICATION
2U
MAXIMUM POWER
Intel – 205 W
AMD – 170 W
Additional Information
| CPU Support | Intel/AMD |
| CPU Socket | Intel® Socket
LGA1700, LGA1200/115X LGA2011/2066/SQUARE LGA1356/1366 AMD® Socket AM4/AM5 FM2+/FM2/AM2/AM2+/AM3/AM3+/FM |
| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | 2U Server |
| Fan Dimension | 70 x 70 x 15 mm |
| Speed | At Duty Cycle 0~20%: 3300±10% RPM At Duty Cycle 50%: 4500±10% RPM At Duty Cycle 100%: 6000±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~ 20%: 1.80 W At Duty Cycle 50%: 3.24 W At Duty Cycle 100%: 7.92 W |
| Noise Level | At Duty Cycle 0~ 20%: 31.70 dBA At Duty Cycle 50%: 38.44 dBA At Duty Cycle 100%: 46.42 dBA |
| Air Flow | At Duty Cycle 0~ 20%: 27.43 CFM At Duty Cycle 50%: 37.40 CFM At Duty Cycle 100%: 54.02 CFM |
| Air Pressure | At Duty Cycle 0~ 20%: 2.95 mm-H2O At Duty Cycle 50%: 5.49 mm-H2O At Duty Cycle 100%: 11.45 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal output) Pin4- (PWM) |
| Water Pump | Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute |
| Radiator | Space Saver Light Weight Radiator
(Dimension: 204 x 45 x 75 mm) |
| Cold Plate | Cold Plate Module with Copper Base
(Dimension: 64.5 x 64.5 x 23.5) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
