L29
CPU SUPPORT
AMD
CPU SOCKET
AMD Socket |
sWRX8/sTRX4/TR4/SP3
APPLICATION
1U
MAXIMUM POWER
AMD : 280 Watts
Additional Information
| CPU Support | AMD® |
| CPU Socket | Socket sWRX8/sTRX4/TR4/SP3 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 1U Server |
| Fan Dimension | 40.0 x 40.0 x 28.0 mm |

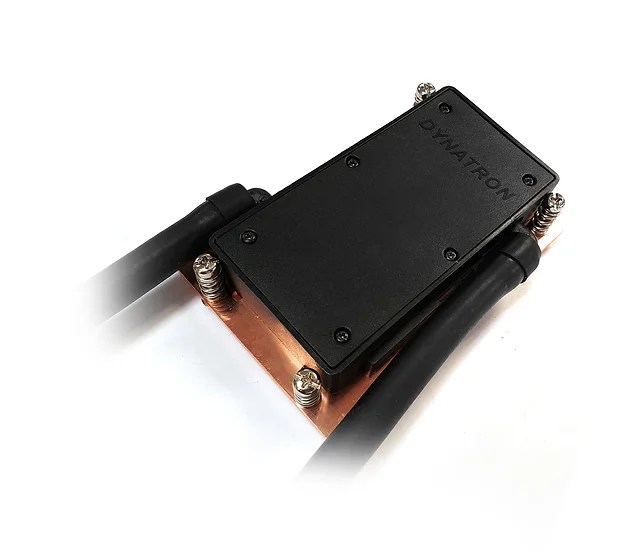

| Cold Plate Dimension | 117 x 80 x 24.5 mm |

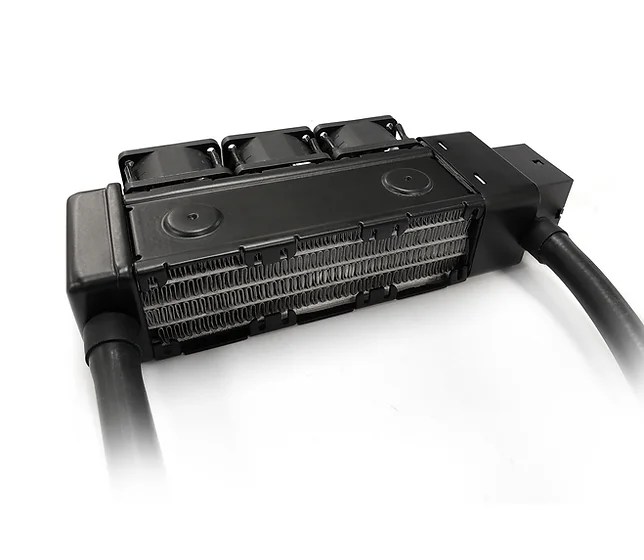

| Radiator Dimension | 188 x 40 x 74.5 mm |
| Speed | At Duty Cycle 0~20%: 2000 ± 10% RPM At Duty Cycle 50%: 10000 ± 10% RPM At Duty Cycle 100%: 18000 ±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 2.40 W At Duty Cycle 50%: 7.20 W At Duty Cycle 100%: 15.60 W |
| Air Flow | At Duty Cycle 0~20%: 2.944 CFM At Duty Cycle 50%: 14.72 CFM At Duty Cycle 100%: 30.6 CFM |
| Noise Level | At Duty Cycle 0~20%: 16.00 dBA At Duty Cycle 50%: 44.24 dBA At Duty Cycle 100%: 57.00 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.61 mm-H2O At Duty Cycle 50%: 15.12 mm-H2O At Duty Cycle 100%: 49.0 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+)Pin3- (Tachometer output) Pin4- (PWM Control) |
| Water Pump | Stand-alone Water Pump in flow rate 1.7 Liter Per Minute |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
