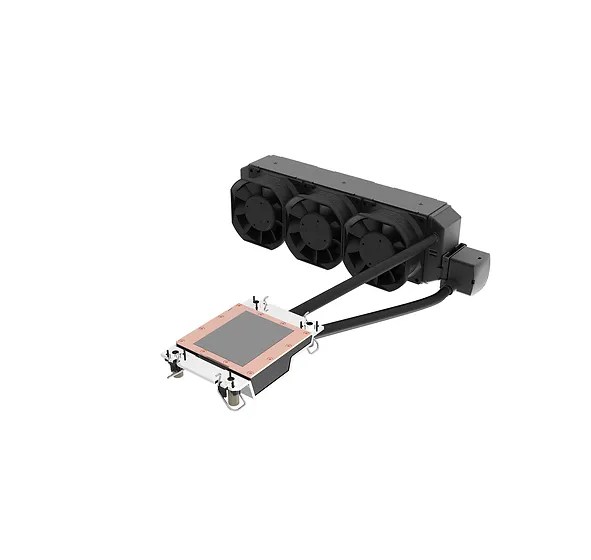

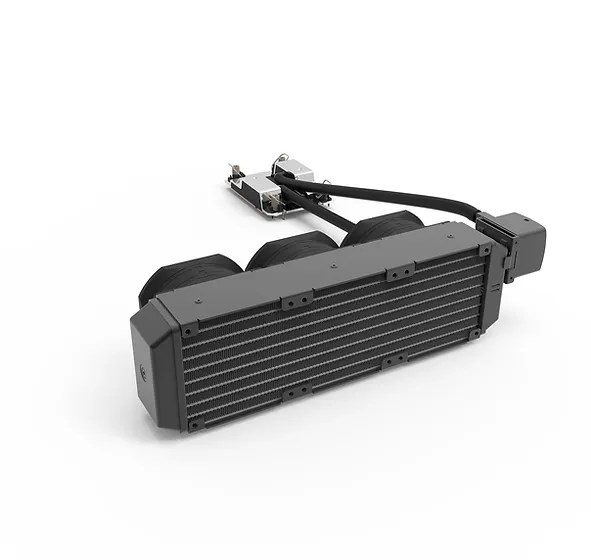

L33
CPU SUPPORT
Intel
CPU SOCKET
Intel Socket |
FCLGA 4189-4/5 (Socket P4/P5)
APPLICATION
2U
Additional Information
| CPU Support | Intel® 3rd Gen. Xeon Scalable Processor (code name Ice Lake and Copper Lake) |
| CPU Socket | FCLGA 4189-4/5(Socket P4/P5) |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 2U Server and Up |
| Fan Dimension | 80 x 80 x 38 mm |
| Cold Plate Dimension | 323.5 x 83.5 x 82 mm |
| Radiator Dimension | 113 x 78 x 31.5 mm |
| Speed | At Duty Cycle 0~20%: 2400 ± 10% RPM At Duty Cycle 50%: 4800 ± 10% RPM At Duty Cycle 100%: 8000 ±10% RP |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Noise Level | At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.4 dB |
| Air Flow | At Duty Cycle 0~20%: 35.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Air Pressure | At Duty Cycle 0~20%: 1.39 mm-H2O At Duty Cycle 50%: 5.97 mm-H2O At Duty Cycle 100%: 34.06 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
