Air cooling

CP65-S

CPU SUPPORT
Intel|AMD

CPU SOCKET

Intel Socket |

LGA1851/1700, LGA1200/115X

AMDSocket |

AM4/AM5

APPLICATION
1U

— Our high-performance quick disconnect solutions are tailored to customer needs

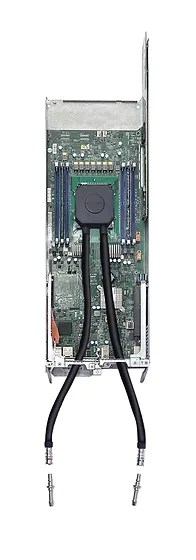

—  Equipped with high-performance cold plates for the latest Intel and AMD CPUs

—  Compatible with CPC, Stäubli, and pipe thread connectors

Additional Information

CPU Support Intel/AMD
CPU Socket LGA1700/LGA1200/LGA115X

AM4/AM5

Screw Type #6-32/M3
Installation Torque 6-10 in-lb/5-7 in-lb

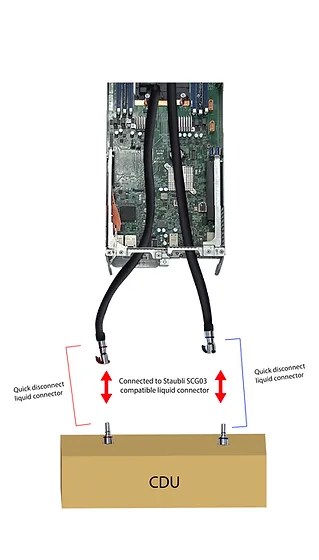

Solution Staubli SCG03 compatible quick disconnect server
Connector Staubli SCG03 Female
Form Factor Server 1U and up
Hose Length 300 mm
Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
