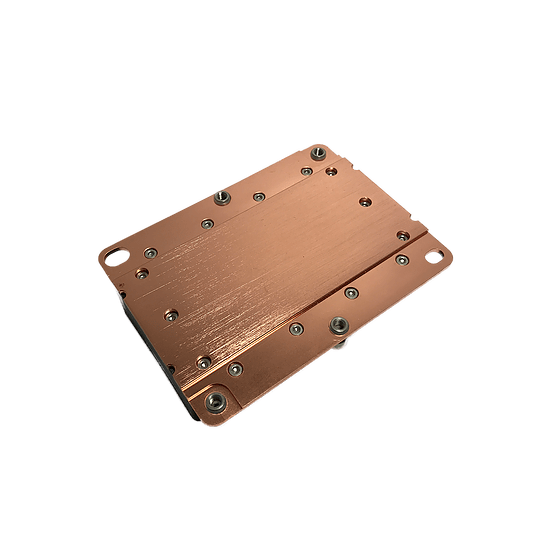

CP100
CPU SOCKET
Intel Socket |
LGA3647 Narrow
– High-Performance design
– Copper skived fin Cold plate
– User friendly mounting kit available
– Captive mounting included for LGA3647
Additional Information
| Screw Type | M4 |
| Installation Torque | 12 in-lb |
| Weight | 258g ± 5g |
| Dimension | 108x80x24.3mm |
| Material | Copper bottom with PBT cover |
| OD Barbs | 7.5mm |
| Compatible hose | 5mm ID |
| RoHS | Compliance |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
