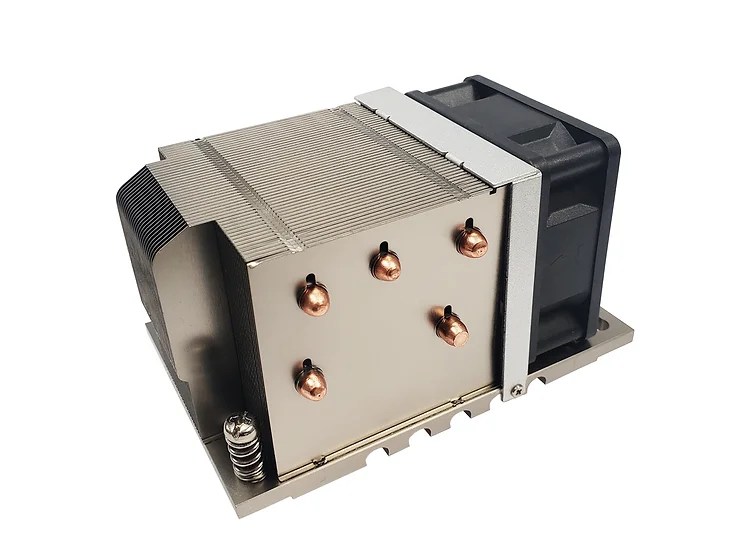

A54
CPU SUPPORT
AMD
CPU SOCKET
AMD Socket |
SP6/TR5
APPLICATION
2U
MAXIMUM POWER
SP6: 225W
sTR5: 350W
Additional Information
| CPU Support | AMD® THREADRIPPER / AMD® THREADRIPPER PRO 7000 / AMD® EPYC™ Processor |
| CPU Socket | SP6/TR5 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 2U Server and up |
| Dimensions | 119.0 x 79.0 x 66.0 mm (L×W×H) |
| Weight | 455g |

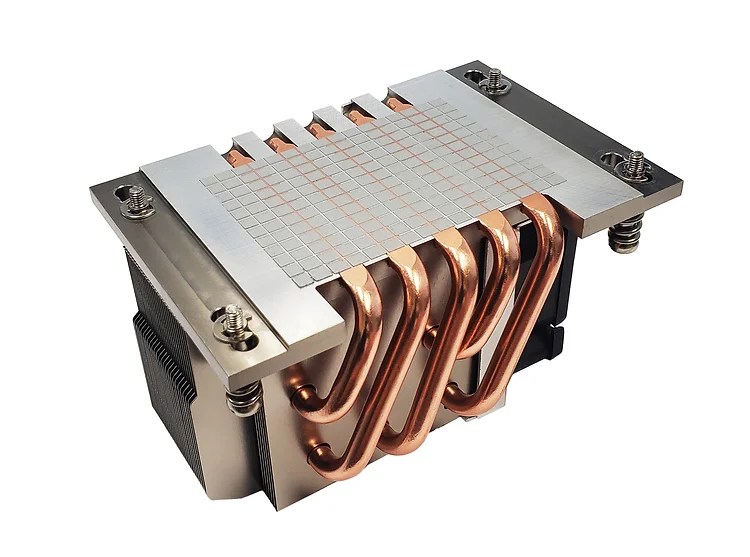

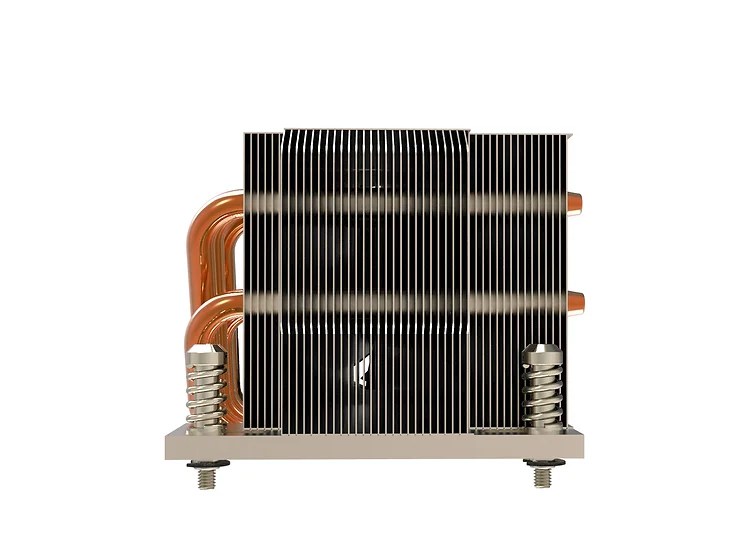

| Material | Aluminum Heatsink with Heatpipe Embedded |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 20%: 2300 ± 10% RPM
At Duty Cycle 50%: 5400 ± 10% RPM At Duty Cycle 100%: 11000 ± 10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
| Air Flow | At Duty Cycle 0~20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
| Noise Level | At Duty Cycle 0~20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
