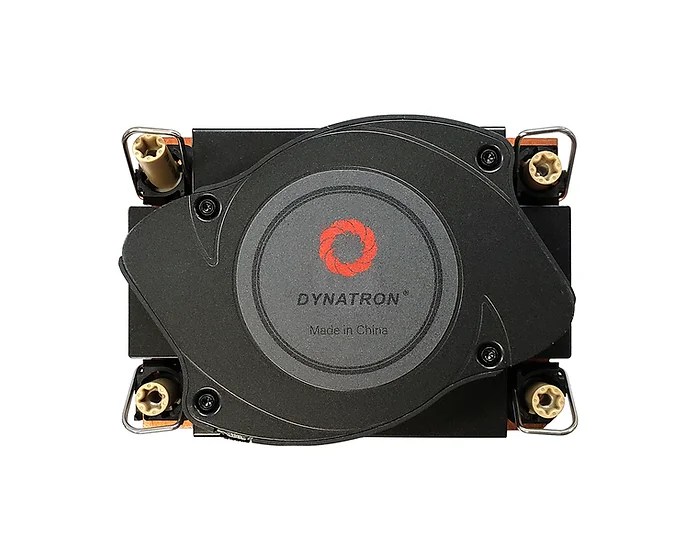

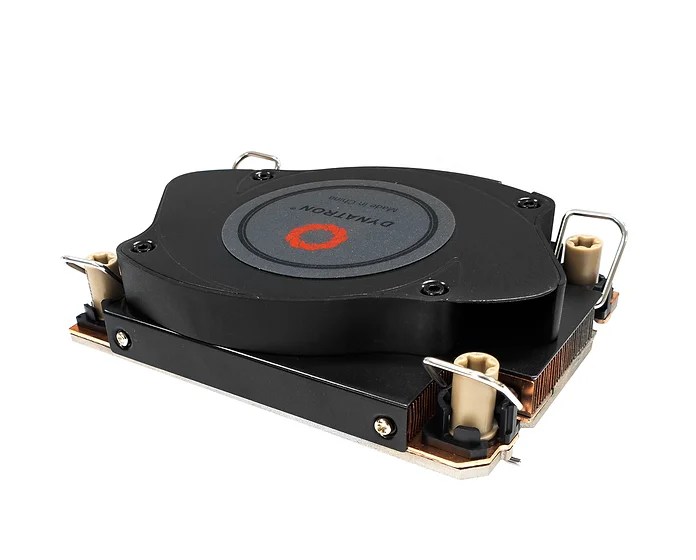

N3
CPU SUPPORT
Intel
CPU SOCKET
FCLGA4189-4/5(Socket P4/P5)
APPLICATION
1U
MAXIMUM POWER
205 W
* For Intel® 3rd Gen. Xeon Scalable Processor(code name Copper Lake, Socket LGA4189-5), DY-PK-4189-P5 Package Carrier needs to purchase separately.
Additional Information
CPU Support | Intel® 3rd Gen. Xeon Scalable Processor (code name Ice Lake and Copper Lake) |
CPU Socket | FCLGA 4189-4/5(Socket P4/P5) |
Screw Type | #8-32 |
Installation Torque | 8 in-lb |
Solution | 1U Server and Up |
Dimensions | 113.0 x 80 x 27 mm |
Weight | 410 g |

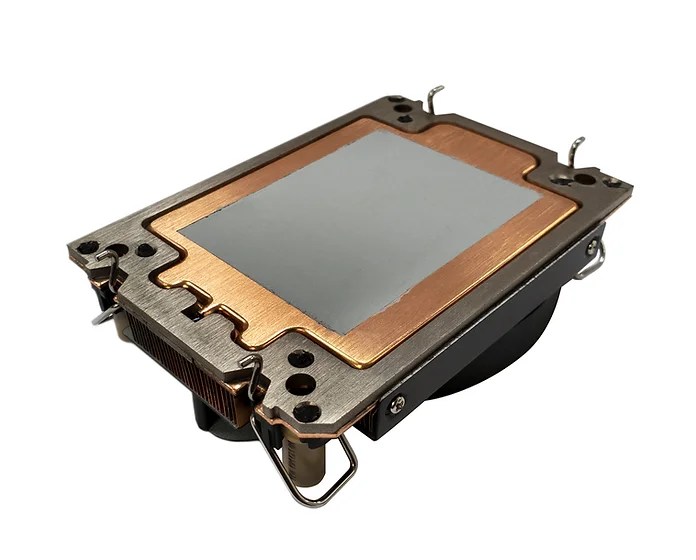

Material | Copper1100 Heatsink with Vapor Chamber Base |
Fan Dimension | 80 x 13 mm |
Speed | At Duty Cycle 0~20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM |
Rated Voltage | 12V |
Bearing | 2 Ball Bearing |
Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W |
Air Flow | At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
Noise Level | At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
Air Pressure | At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O |
Lead Wire Pin Out | Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
Thermal Grease | Shin-Etsu 7762 or Equivalent |
Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
How to install Dynatron Cooler on Intel socket LGA 4189 or LGA4677
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
