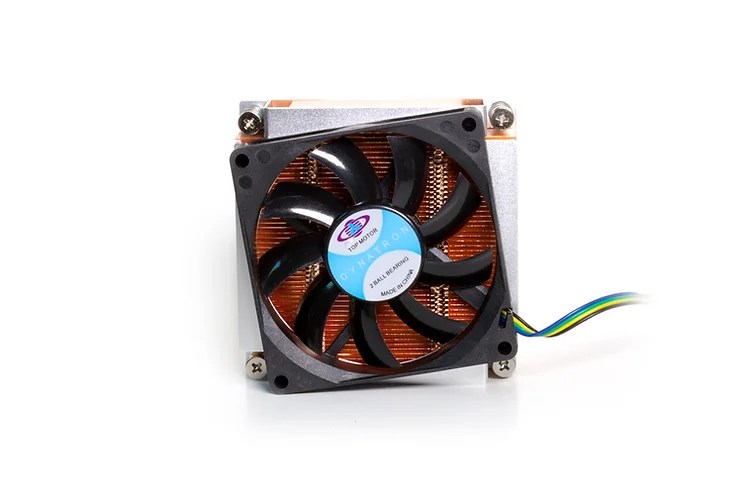

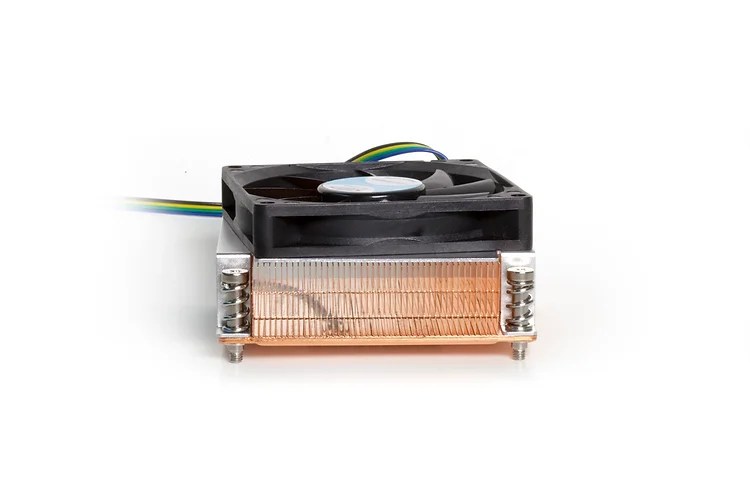

R30
CPU SUPPORT
Intel
CPU SOCKET
LGA2011/2066/SQUARE
APPLICATION
2U
MAXIMUM POWER
165W
Additional Information
CPU Support | Intel |
CPU Socket | LGA 2011 (Square Type, 80mm x 80mm Mounting Pitch) / LGA 2066 |
Screw Type | M4 |
Installation Torque | 10-16 in-lb |
Solution | 2U Server |
Dimensions | 90.0 x 90.0 x 41.5 mm |
Weight | 480 g |

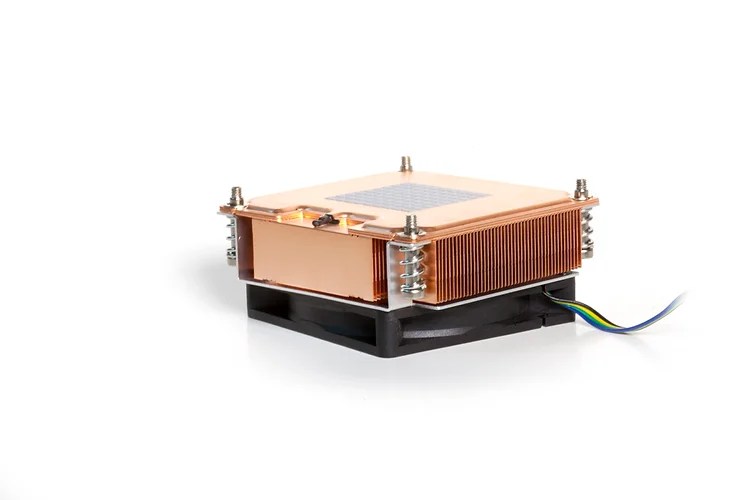

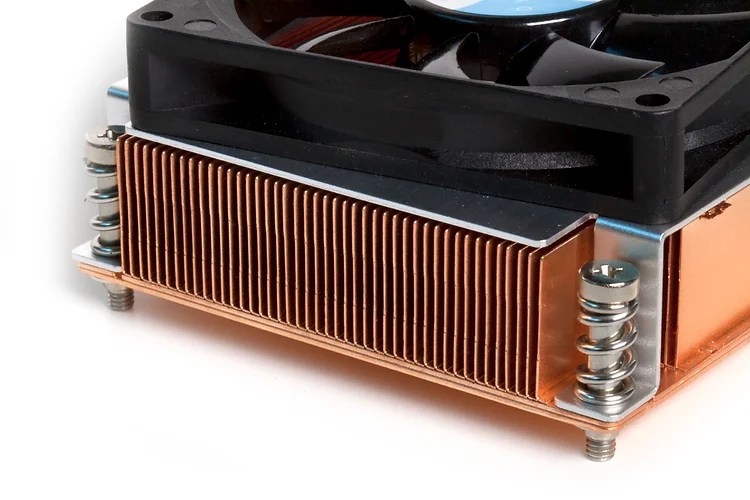

Material | Vapor Chamber heatsink with Copper Stacked Fins |
Fan Dimension | 80 x 80 x 15 mm |
Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 2500 RPM At Duty Cycle 100%: 4000 RPM |
Bearing | 2 Ball Bearing |
Rated Voltage | 12V |
Power | At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.4 W At Duty Cycle 100%: 5.4 W |
Air Flow | At Duty Cycle 20%: 9.2 CFM At Duty Cycle 50%: 30.8 CFM At Duty Cycle 100%: 48.6 CFM |
Noise Level | At Duty Cycle 20%: 17.0 dBA At Duty Cycle 50%: 27.3 dBA At Duty Cycle 100%: 40.2 dBA |
Air Pressure | At Duty Cycle 20%: 0.30 mm-H2O At Duty Cycle 50%: 2.60 mm-H2O At Duty Cycle 100%: 5.9 mm-H2O |
Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM) |
Thermal Grease | Pre-Printed Shin-Etsu 7762 Thermal Grease |
Life- Continuous operating
under normal temperature (40°C/104 °F) |
70,000 Hours |
