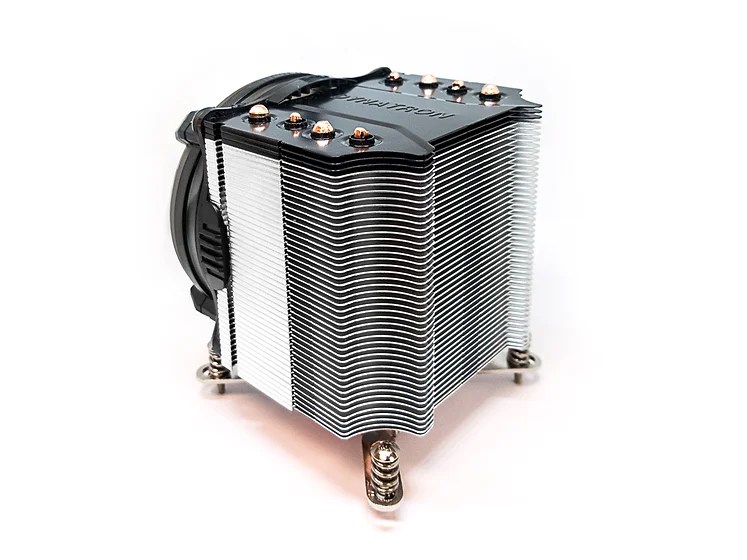

Air cooling

R17

CPU SUPPORT
Intel

CPU SOCKET

LGA2011/2066/SQUARE

APPLICATION
3U & UP

MAXIMUM POWER

165W

Additional Information

CPU Support Intel
CPU Socket LGA 2011/2066 (Square Type, 80 x 80mm mounting pitch)
Screw Type M4
Installation Torque 10-16 in-lb
Solution 3U and Up, Workstation
Dimensions 91.0 x 91.0 x 110.0 mm
Weight 530 g

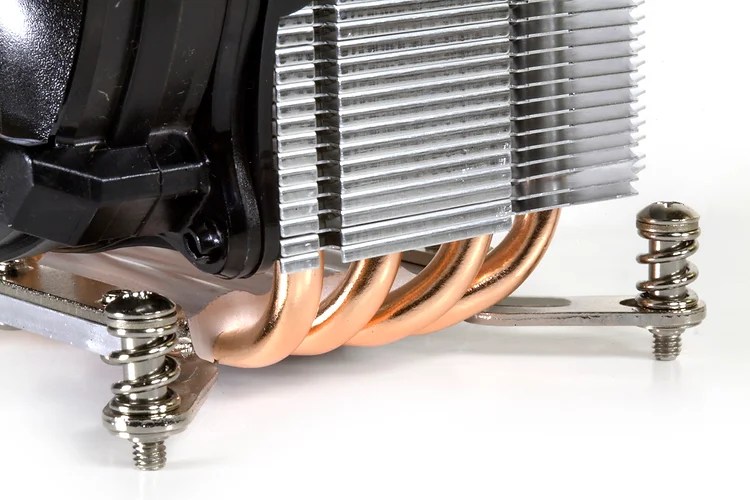

Material Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan Dimension 92 x 25 mm
Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 1800 RPM
At Duty Cycle 100%: 2500 RPM
Rated Voltage 12V
Bearing 2 Ball Bearing
Power Power
At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 3.0 W
Air Flow Power
At Duty Cycle 20%: 17.34 CFM
At Duty Cycle 50%: 31.21 CFM
At Duty Cycle 100%: 43.36 CFM
Noise Level Power
At Duty Cycle 20%: 17.0 dBA
At Duty Cycle 50%: 24.78 dBA
At Duty Cycle 100%: 31.92 dBA
Air Pressure At Duty Cycle 20%: 0.48 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 3.0 mm-H2O
Lead Wire Pin Out Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Life- Continuous operating

under normal temperature

(40°C/104 °F)

70,000 Hours
