Air cooling
You are here:
R14
CPU SUPPORT
Intel
CPU SOCKET
LGA2011/2066/NARROW
APPLICATION
2U
MAXIMUM POWER
165W
Additional Information
| CPU Support | Intel |

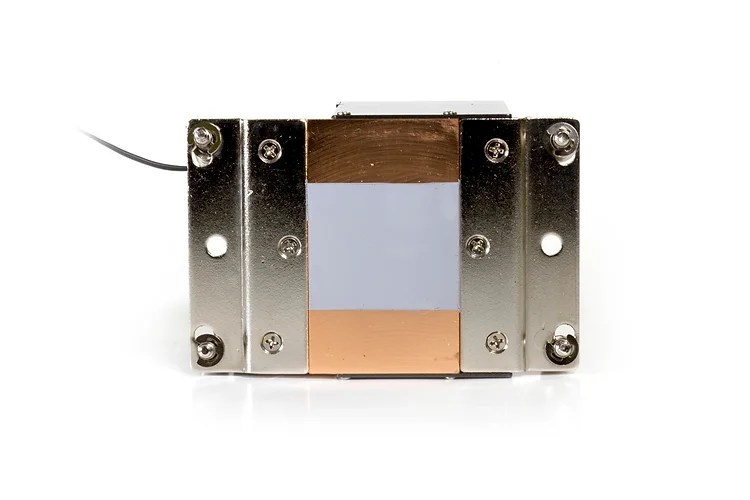

| CPU Socket | LGA 2066/2011 (Narrow Type, 56mm x 95mm Mounting Pitch) |
| Screw Type | M4 |
| Installation Torque | 10-16 in-lb |
| Solution | 2U Server and Up |

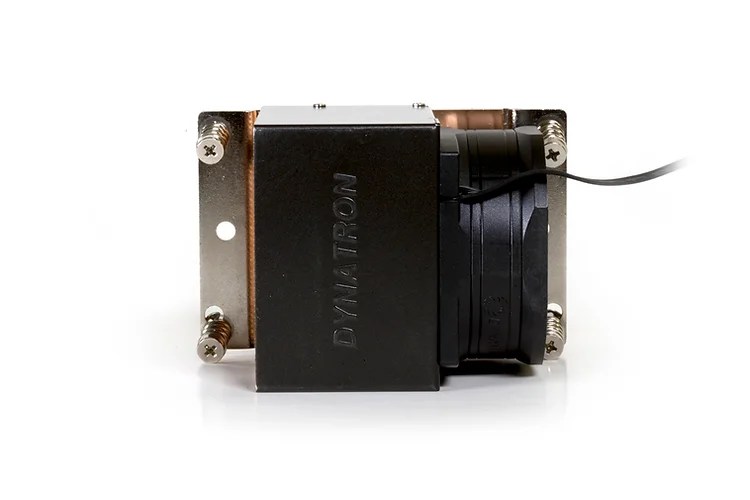

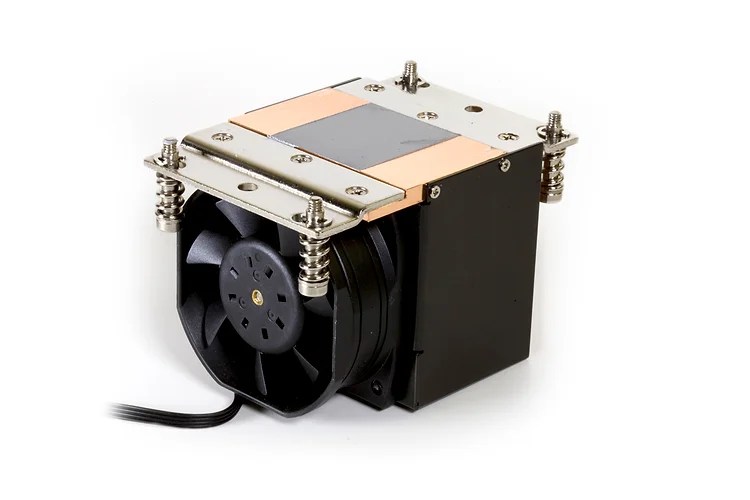

| Dimensions | 102.0 x 70.0 x 67.0 mm |
| Weight | 660 g |

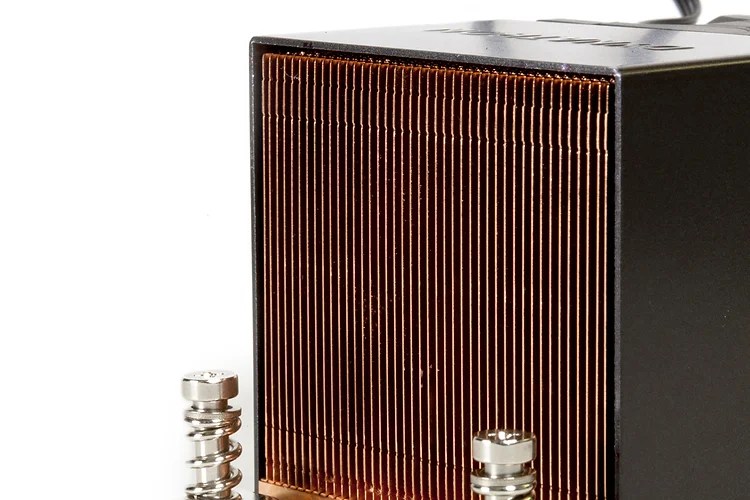

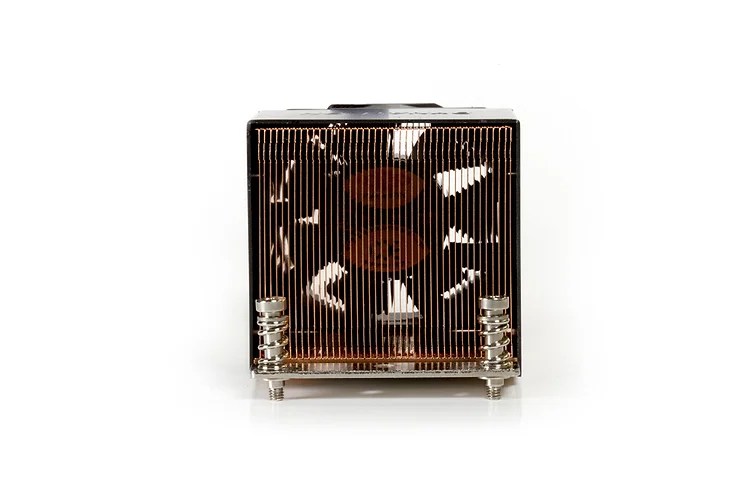

| Material | Copper Heatsink with Stacked Fins |

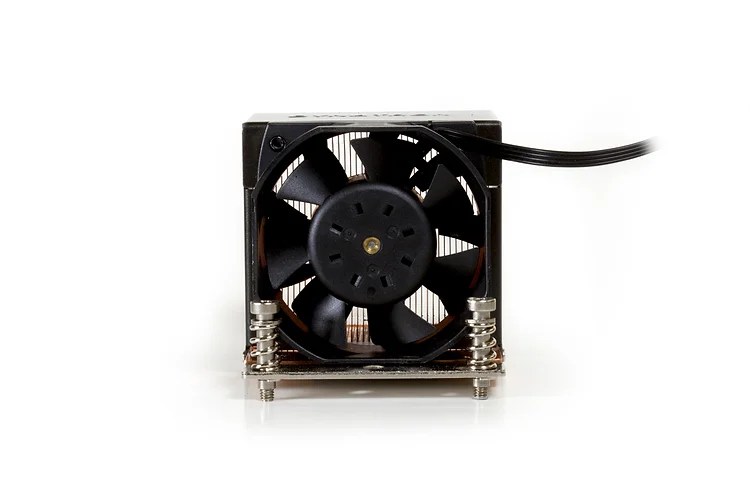

| Fan Dimension | 60 x 60 x 28 mm |
| Speed | At Duty Cycle 20%: 1500 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 2.16 W At Duty Cycle 100%: 7.2 W |
| Air Flow | At Duty Cycle 20%: 8.8 CFM At Duty Cycle 50%: 20.3 CFM At Duty Cycle 100%: 40.5 CFM |
| Noise Level | At Duty Cycle 20%: 16.0 dBA At Duty Cycle 50%: 32.9 dBA At Duty Cycle 100%: 47.5 dBA |
| Air Pressure | At Duty Cycle 20%: 0.7 mm-H2O At Duty Cycle 50%: 3.6 mm-H2O At Duty Cycle 100%: 14.3 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life- Continuous operating
under normal temperature (40°C/104 °F) |
70,000 Hours |
