Q9
CPU SUPPORT
Intel
CPU SOCKET
Intel Socket |
LGA1851/1700
APPLICATION
2U
MAXIMUM POWER
120 W
Additional Information
| CPU Support | Intel Core 12th -15th Gen |
| CPU Socket | LGA 1851/1700 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | 2U Server & Up |
| Dimensions | 95.0 x 95.0 x 41 mm |
| Weight | 218 g |

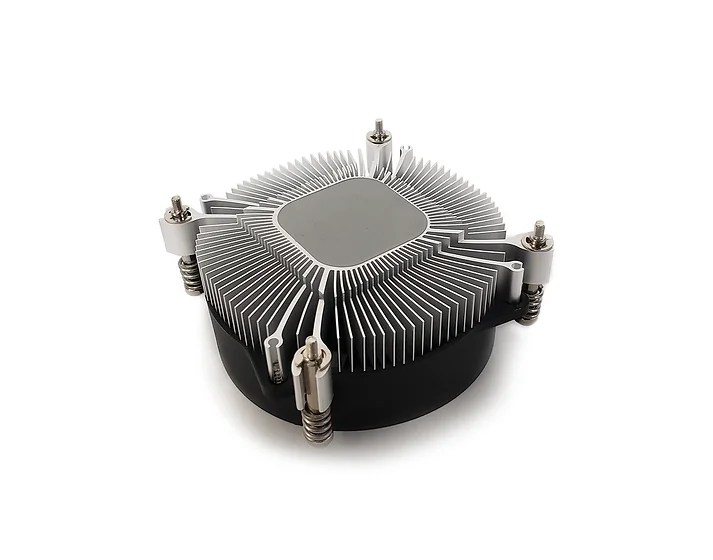

| Material | Aluminum Extruded Heat Sink |

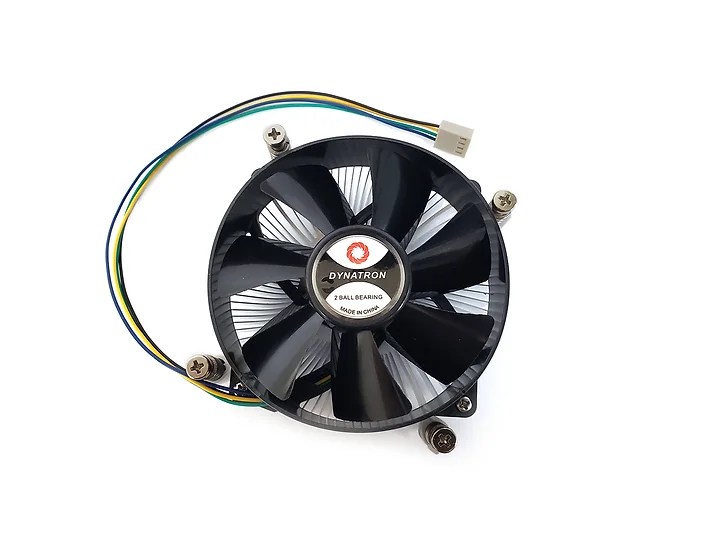

| Fan Dimension | 92 CM Plastic Fan with 4-Pin PWM Connector, 4000RPM |
| Speed | At Duty Cycle 0~20%: 1000 ± 200 RPM
At Duty Cycle 50%: 2350 ±10% RPM At Duty Cycle 100%: 4000 ±10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.60 W
At Duty Cycle 50%: 1.2 W At Duty Cycle 100%: 5.16 W |
| Air Flow | At Duty Cycle 0~20%: 17.88 CFM
At Duty Cycle 50%: 42.01 CFM At Duty Cycle 100%: 71.50 CFM |
| Noise Level | At Duty Cycle 0~20%: 16.00 dBA
At Duty Cycle 50%: 30.03 dBA At Duty Cycle 100%: 41.58 dBA |
| Static Pressure | At Duty Cycle 0~20%: 0.475 mm-H2O
At Duty Cycle 50%: 2.623 mm-H2O At Duty Cycle 100%: 7.60 mm-H2O |
| Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method,
if there any discrepancies or questions, please contact us!
