U9
Additional Information
| CPU Support | AMD® Ryzen |
| CPU Socket | AM4/AM5, LGA1851/1700, LGA1200/115X, LGA20XX |

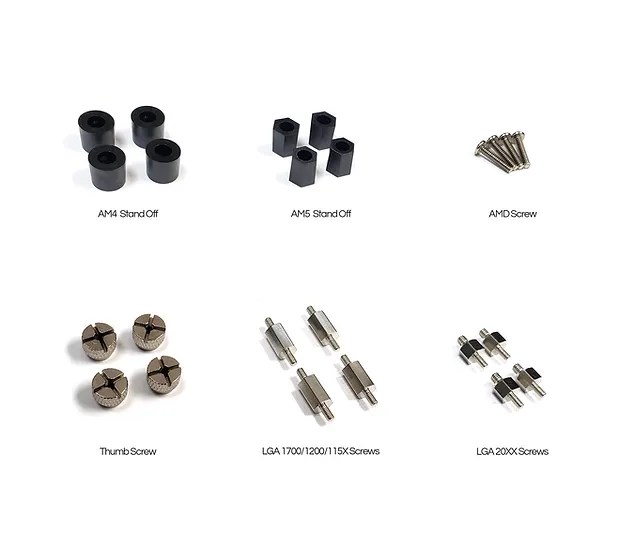

| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | Tower PC |
| Dimensions | 125 x 158 x 80 mm |
| Weight | 706 g |

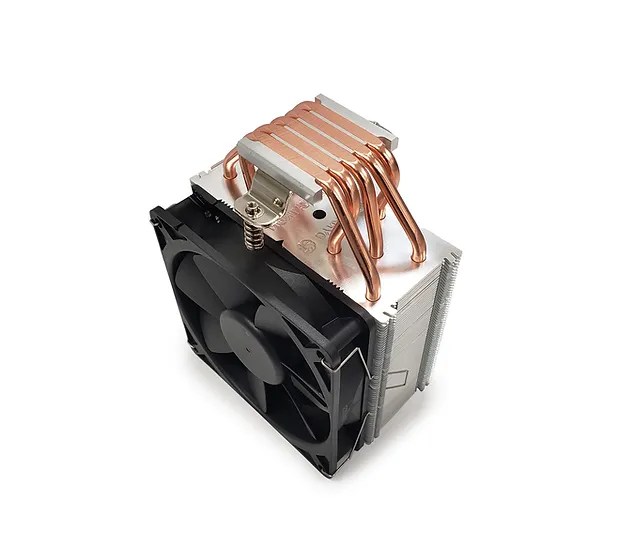

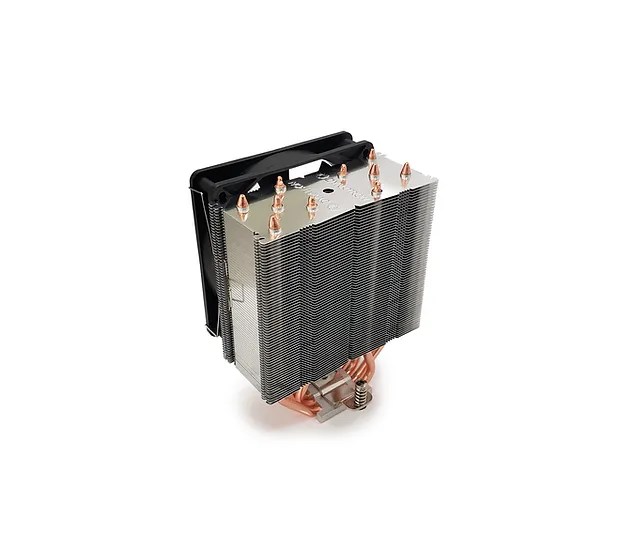

| Material | Aluminum Fins with Heat Pipe Embedded |
| Fan Dimension | 120.0 x 120.0 x 25.0 mm |
| Speed | At Duty Cycle 0~20%: 600 ± 200 RPM
At Duty Cycle 50%: 1500 ± 200 RPM At Duty Cycle 100%: 2200 ± 10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.6 W
At Duty Cycle 50%: 1.20 W At Duty Cycle 100%: 2.40 W |
| Air Flow | At Duty Cycle 0~20%: 21.2 CFM
At Duty Cycle 50%: 57.5 CFM At Duty Cycle 100%: 84.3 CFM |
| Noise Level | At Duty Cycle 0~20%: 14.26 dBA
At Duty Cycle 50%: 27.7 dBA At Duty Cycle 100%: 36.1 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.24 mm-H2O
At Duty Cycle 50%: 1.76 mm-H2O At Duty Cycle 100%: 3.78 mm-H2O |

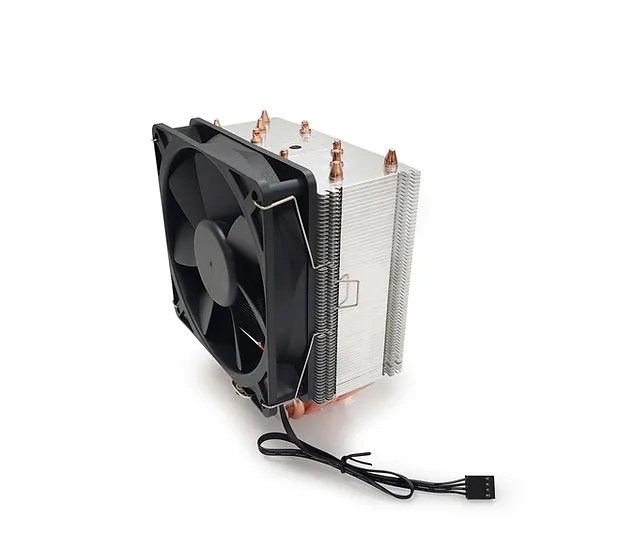

| Lead Wire Pin Out | Pin#1- Black(-)
Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*All product specifications and product images are subject to change without notice.
