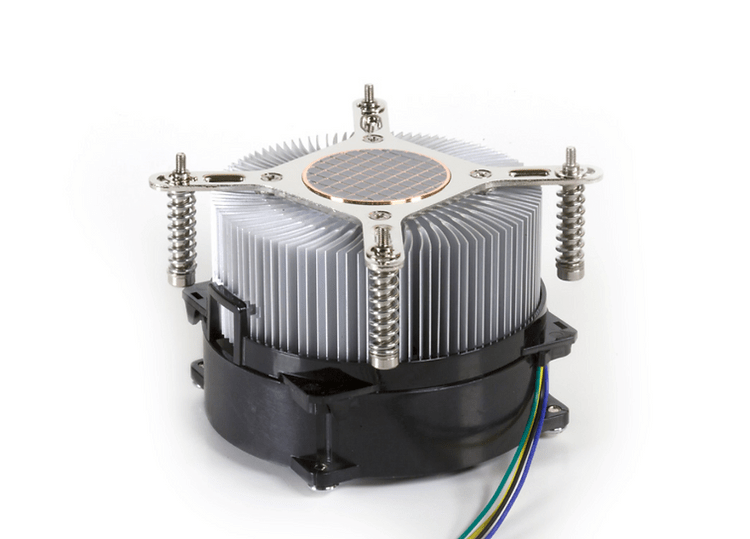

Air cooling
You are here:
K987
CPU SUPPORT
Intel
CPU SOCKET
LGA 775, LGA 1356/1366,LGA 1200/115X
APPLICATION
3U & UP
MAXIMUM POWER
95 W for Socket 1356/1366
125 W for Socket 1200/115X
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 115X/1200/1356/1366/775 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | 3U Server and Up |
| Dimensions | 106.0 x 106.0 x 72.6 mm |
| Weight | 500 g |
| Material | Aluminum Extruded Radial Heatsink with Copper Core |

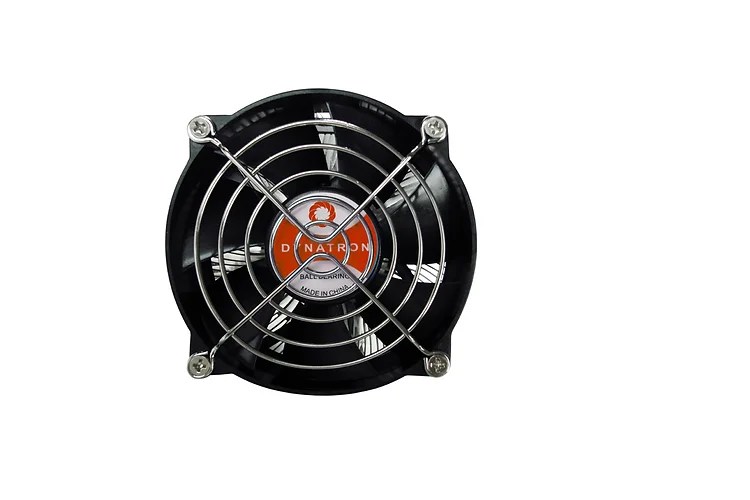

| Fan Dimension | 92 x 25 mm |
| Speed | At Duty Cycle 0~20%: 1200 RPM At Duty Cycle 50%: 1500 RPM At Duty Cycle 100%: 2800 RPM |
| Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 3.6 W |
| Air Flow | At Duty Cycle 0~20%: 21.43 CFM At Duty Cycle 50%: 26.79 CFM At Duty Cycle 100%: 49.99 CFM |
| Bearing | Ball Bearing |
| Rated Voltage | 12V |
| Noise Level | At Duty Cycle 0~20%: 16.08 dBA At Duty Cycle 50%: 20.93 dBA At Duty Cycle 100%: 34.48 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.686 mm-H2O At Duty Cycle 50%: 1.07 mm-H2O At Duty Cycle 100%: 3.74 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
