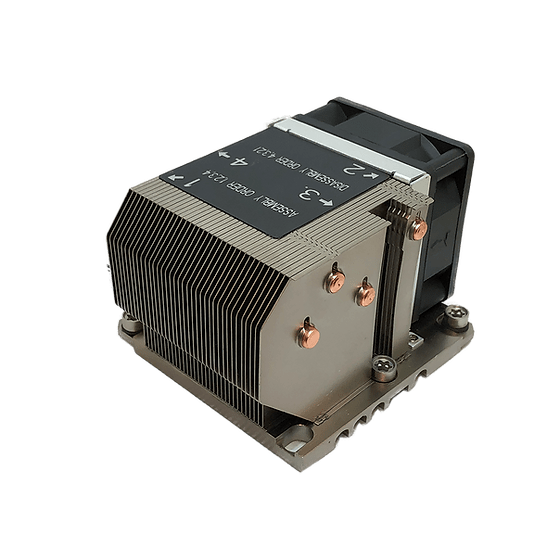

Air cooling
You are here:
B13
CPU SUPPORT
Intel
CPU SOCKET
LGA3647/SQUARE
APPLICATION
2U
MAXIMUM POWER
205W
Additional Information
CPU Support | Intel |
CPU Socket | FCLGA 3647 |
Screw Type | M4 |
Installation Torque | 12 in-lb |
Solution | 2U Server and Up |
Dimensions | 90.0 x 90.0 x 66.0 mm |
Weight | 430 g |

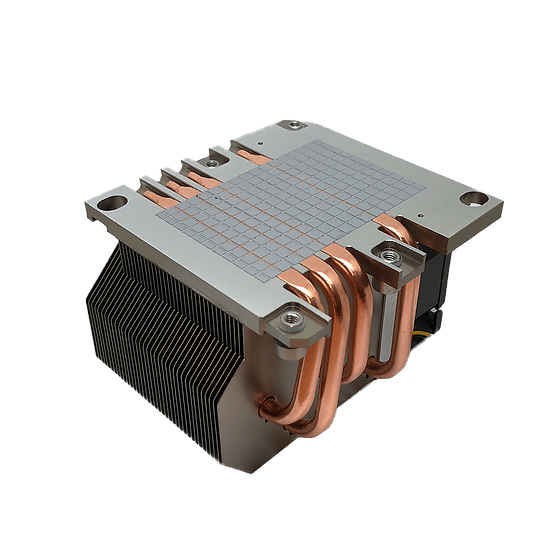

Material | Aluminum Heatsink with Heatpipe Embedded |
Fan Dimension | 60 x 60 x 25 mm |
Speed | At Duty Cycle 20%: 1400 ± 200 RPM At Duty Cycle 50%: 3400 ± 10% RPM At Duty Cycle 100%: 7000 ± 10% RPM |
Rated Voltage | 12V |
Bearing | 2 Ball Bearing |
Power | At Duty Cycle 20%: 0.90 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 5.40 W |
Air Flow | At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM |
Noise Level | At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 35 dBA At Duty Cycle 100%: 50 dBA |
Air Pressure | At Duty Cycle 20%: 0.58mm-H2O At Duty Cycle 50%: 3.65 mm-H2O At Duty Cycle 100%: 14.58 mm-H2O |
Lead Wire Pin Out | Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
Thermal Grease | Shin-Etsu 7762 or Equivalent |
Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
