Air cooling
You are here:
T688
CPU SUPPORT
Intel
CPU SOCKET
LGA3647/NARROW
APPLICATION
2U & UP
MAXIMUM POWER
205 W
Additional Information
| CPU Support | Intel |
| CPU Socket | FCLGA3647 |
| Screw Type | M4 |
| Installation Torque | 12 in-lb |
| Solution | 2U Server and Up |
| Dimensions | 108.0 x 80.0 x 66.0 mm |
| Weight | 600 g |

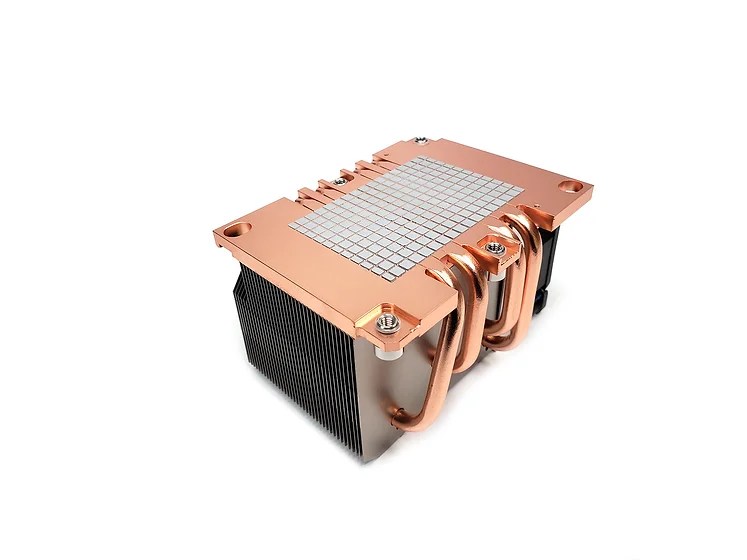

| Material | Aluminum Heatsink with Heatpipe Embedded and Copper Base |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 20%: 1400 ± 200 RPM At Duty Cycle 50%: 3400 ± 10% RPM At Duty Cycle 100%: 7000 ± 10% RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power | At Duty Cycle 20%: 0.90 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 5.40 W |
| Air Flow | At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM |
| Noise Level | At Duty Cycle 20%: 16.00 dBA At Duty Cycle 50%: 35.00 dBA At Duty Cycle 100%: 50.04 dBA |
| Air Pressure | At Duty Cycle 20%: 0.58mm-H2O At Duty Cycle 50%: 3.65 mm-H2O At Duty Cycle 100%: 14.58 mm-H2O |
| Lead Wire Pin Out | Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |

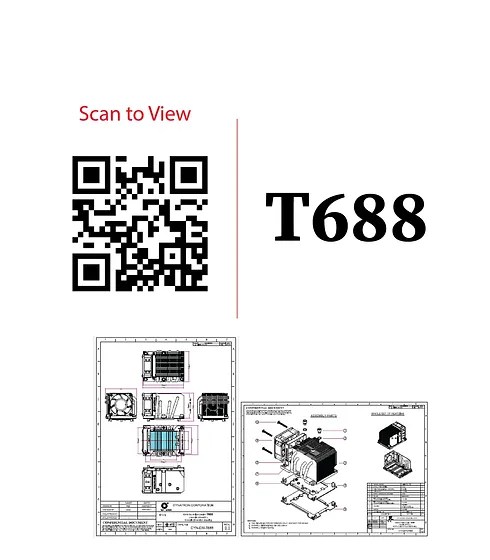

*Please refer to this installation method, if there any discrepancies or questions, please contact us!
