Air cooling
You are here:

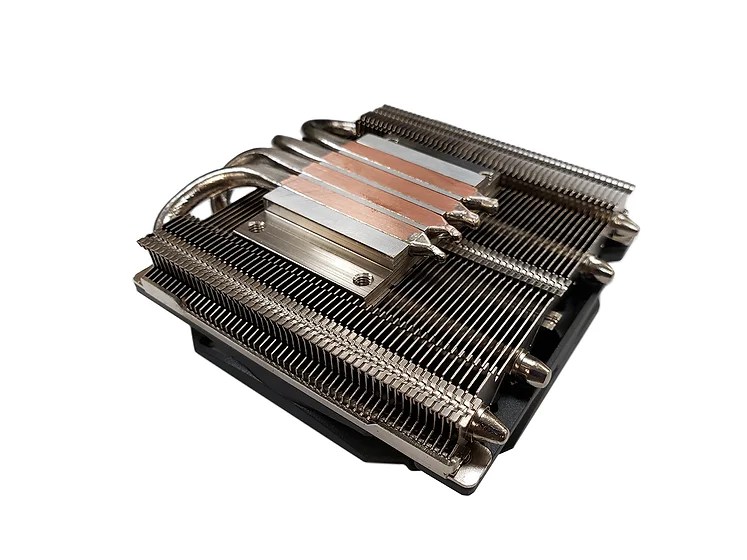

T497
CPU SUPPORT
AMD | Intel
CPU SOCKET

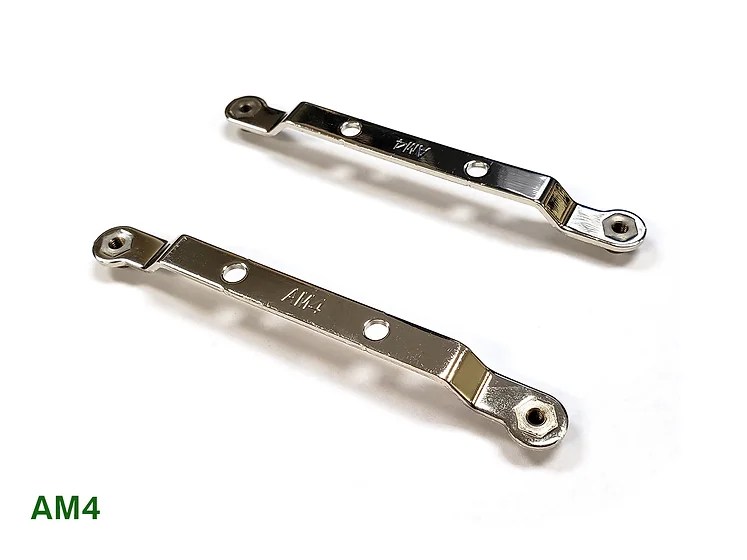

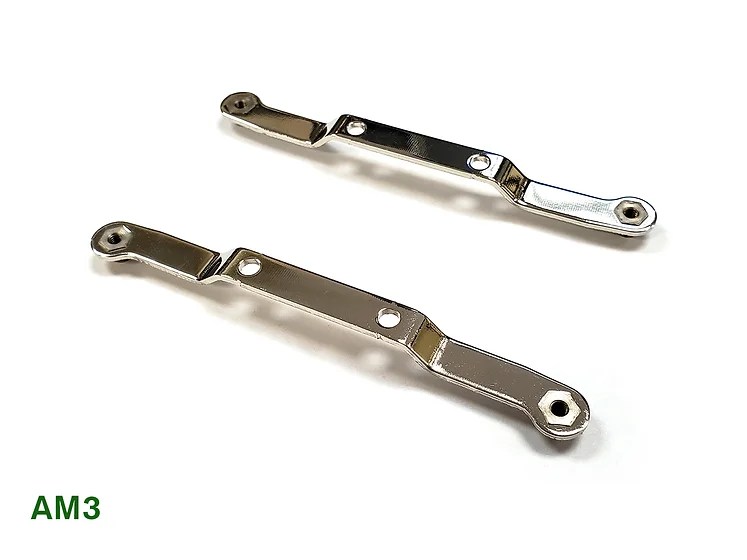

AMD Socket |
AM4, FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1

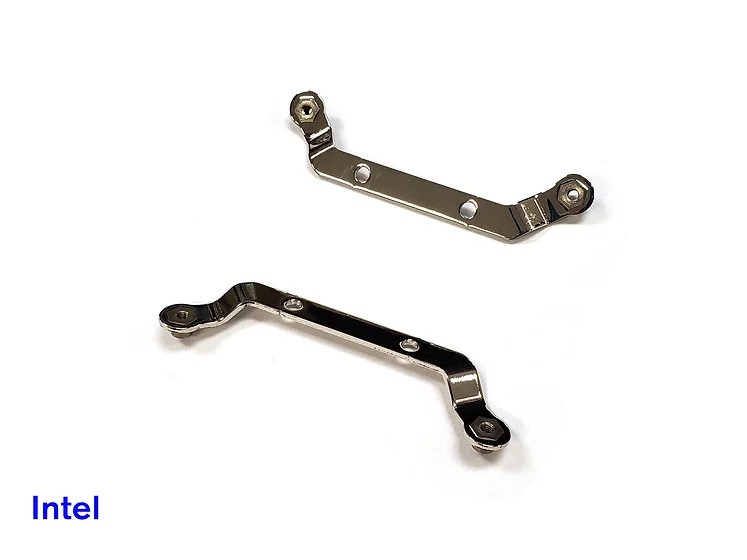

Intel Socket |
LGA1200/115X
APPLICATION
1.5U
MAXIMUM POWER
120W
Additional Information
| CPU Support | Intel/AMD |
| CPU Socket | Intel LGA1151/1150/1155/1156/1200
AMD AM4/FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1 |

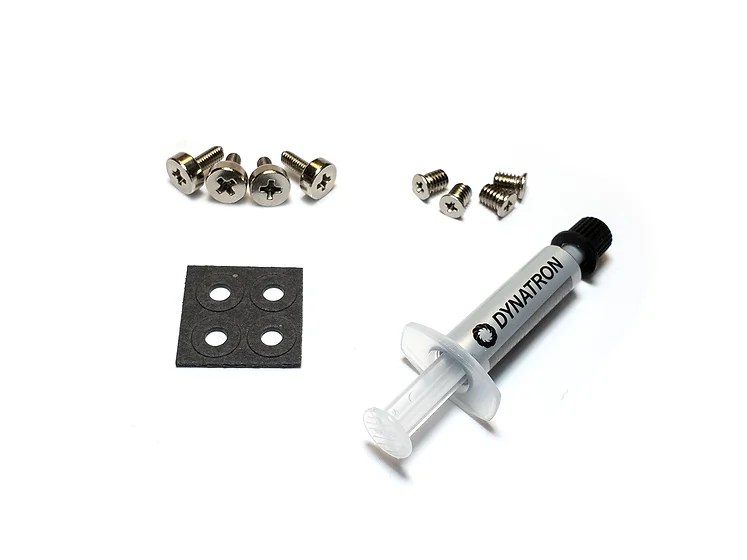

| Screw Type | #6-32/M3 |
| Installation Torque | 6-10 in-lb/5-7 in-lb |
| Solution | 1.5U Server/Mini ITX |
| Dimensions | 93×100×30mm (L×W×H) |
| Weight | 250g |
| Material | Aluminum Fin |
| Fan Dimension | 92mm x 92mm x 12mm |
| Speed | 3600 ± 10% RPM |
| Bearing | Single Ball Bearing |
| Rated Voltage | 12V |
| Power | 3.36 Watts |
| Air Flow | 40 CFM |
| Noise Level | 17~35.8 dBA |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
