Air cooling
You are here:
S2
CPU SUPPORT
Intel
CPU SOCKET
LGA4677
APPLICATION
2U & UP
MAXIMUM POWER
350 W
Note:

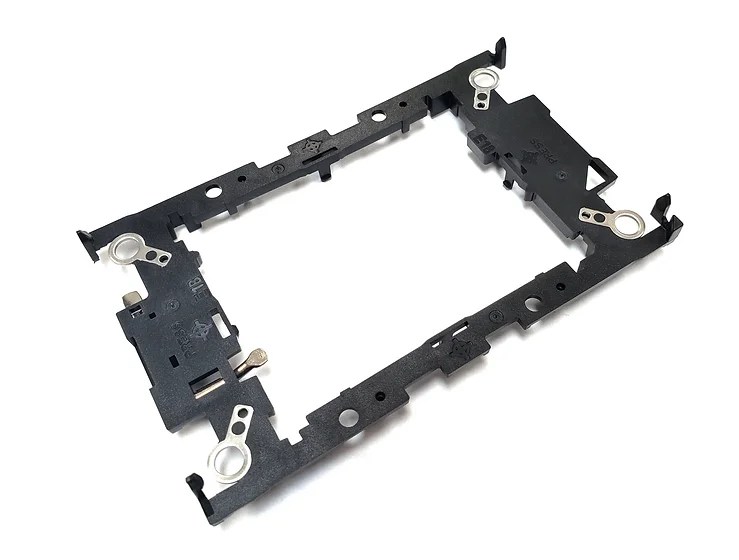

Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier. The E1C Package Carrier is not included but is available upon request.
To find out which Package Carrier corresponds to your processor, please visit the official Intel link for more information. Click here to see the guideline example.
Additional Information
| CPU Support | Intel® Sapphire Rapids Processor |
| CPU Socket | Socket FCLGA 4677 |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 2U Server and up |
| Dimensions | 118 x 78 x 64 mm |
| Weight | 526.60 g |

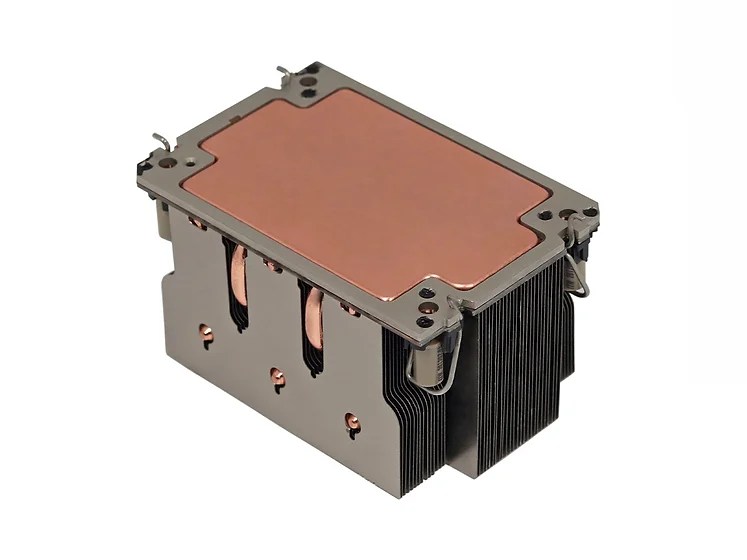

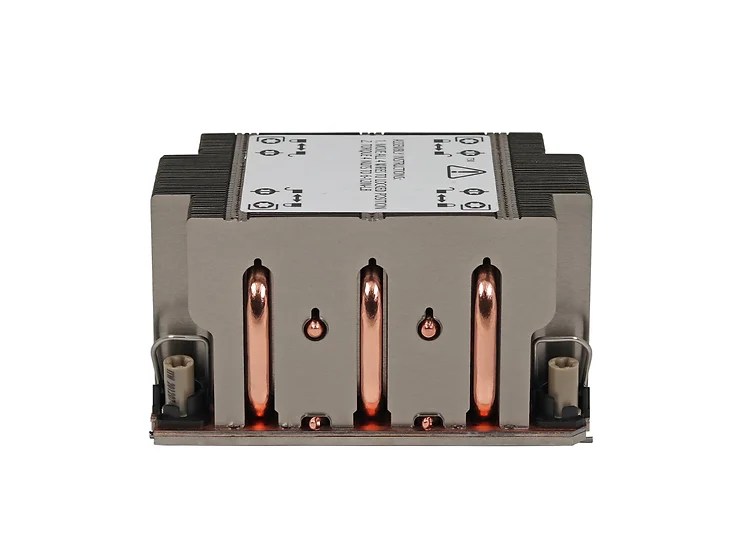

| Material | Copper Vapor Chamber and heat pipe, Aluminum Fin Stack |

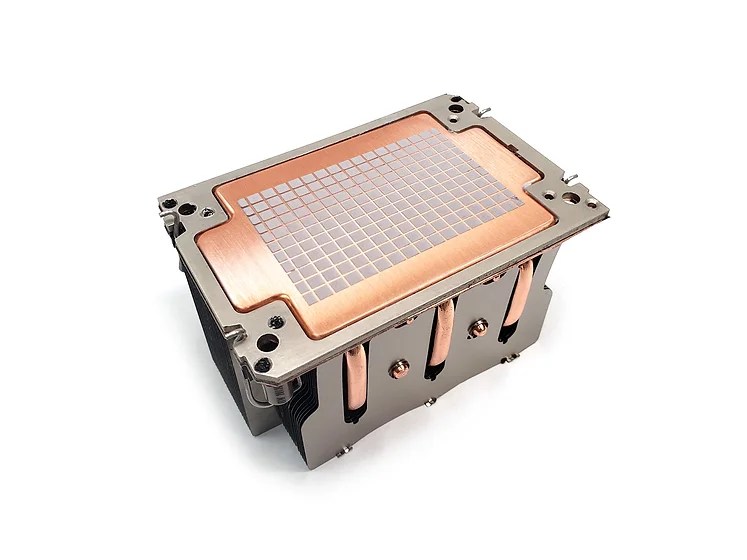

| Thermal Grease | Pre-Printed with SHIN-ETSU 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
