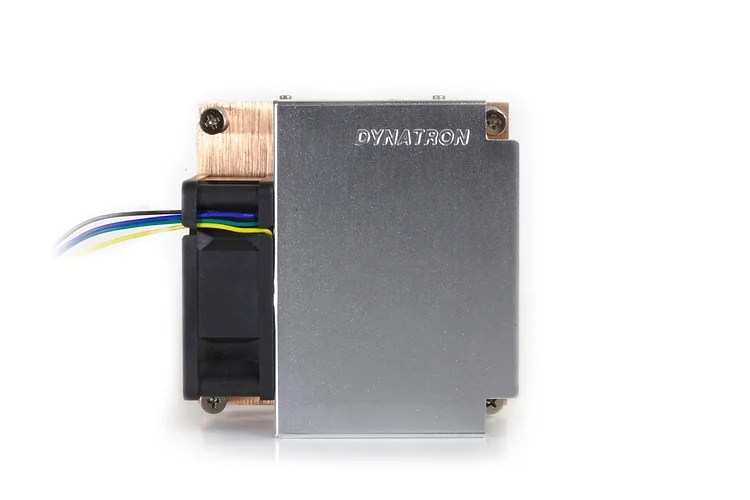

Air cooling
You are here:
R5
CPU SUPPORT
Intel
CPU SOCKET
LGA2011/2066/SQUARE
APPLICATION
2U
MAXIMUM POWER
165W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 2011 (Square Type, 80mm x 80mm Mounting Pitch) / LGA 2066 |
| Screw Type | M4 |
| Installation Torque | 10-16 in-lb |
| Solution | 2U Server and Up |
| Dimensions | 91.5 x 91.5 x 66.0 mm |
| Weight | 590 g |
| Fan Speed | At Duty Cycle 0~20%: 1700 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000~8500 RPM |

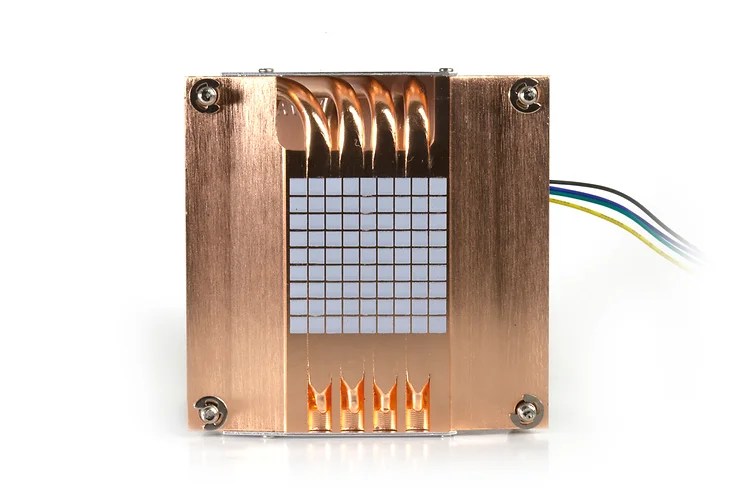

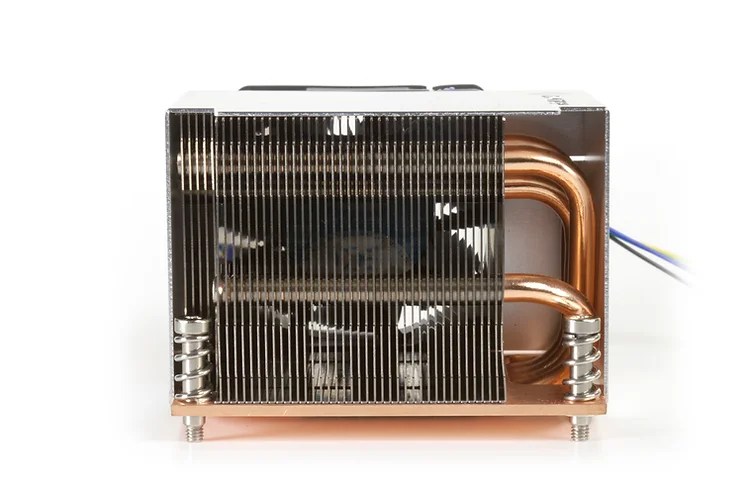

| Material | H.C.C. (Heatpipes Contact CPU) Copper Base & Aluminum Fins with Heatpipes Embedded |
| Rated Voltage | 12V |
| Fan Dimension | 60 x 60 x 25 mm |
| Bearing | 2 Ball Bearing |
| Power | Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 2.5 W At Duty Cycle 100%: 9.6 W |
| Air Flow | At Duty Cycle 0~20%: 9.86 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 49.32 CFM |
| Noise Level | At Duty Cycle 0~20%: 19.32 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 54.26 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.86 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 21.50 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life- Continuous operating
under normal temperature (40°C/104 °F) |
70,000 Hours |
