Air cooling
You are here:

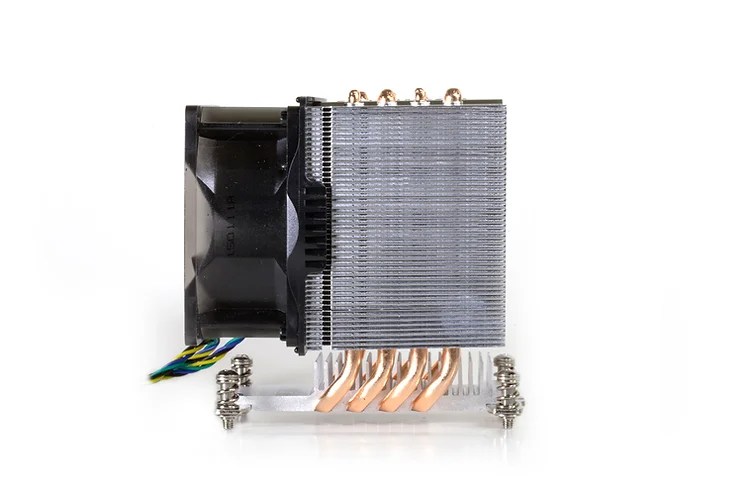

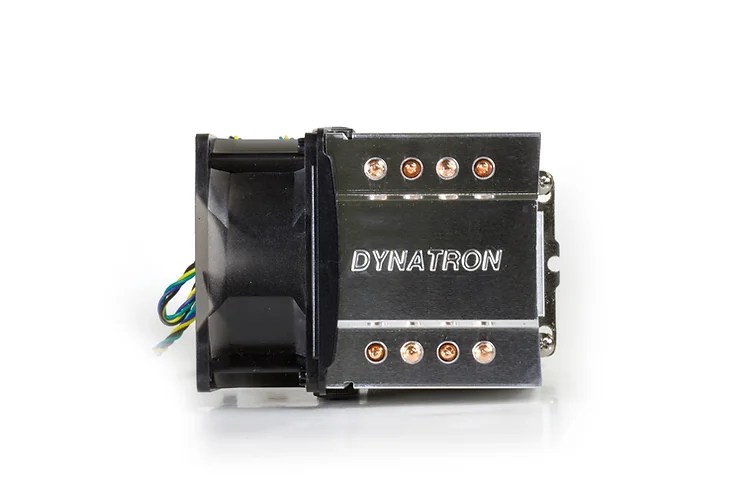

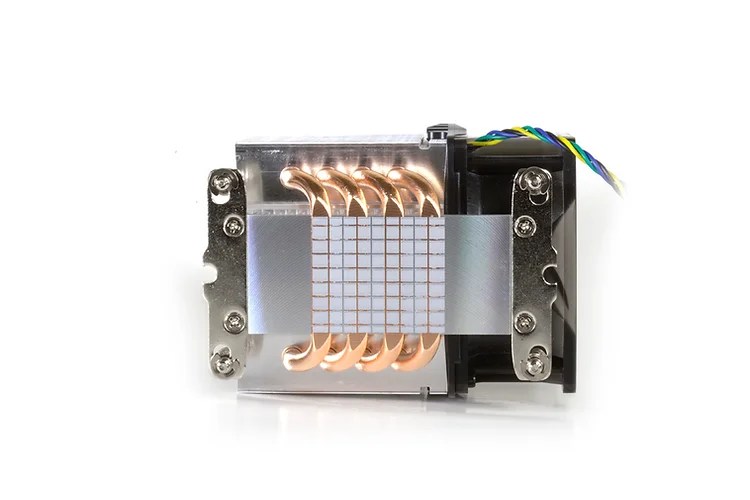

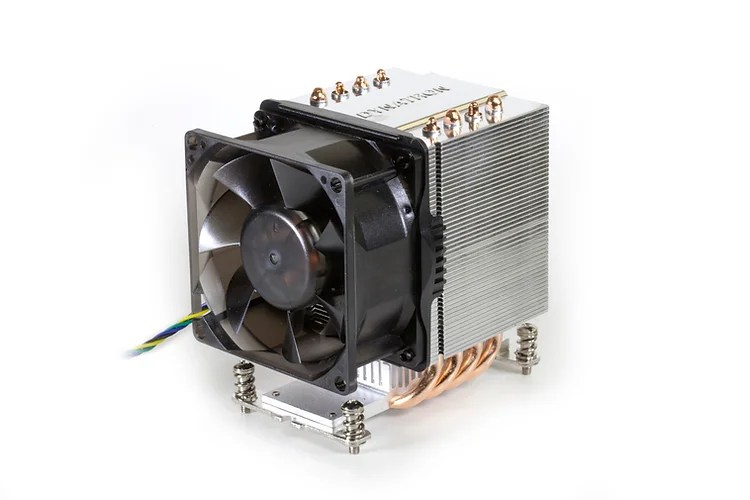

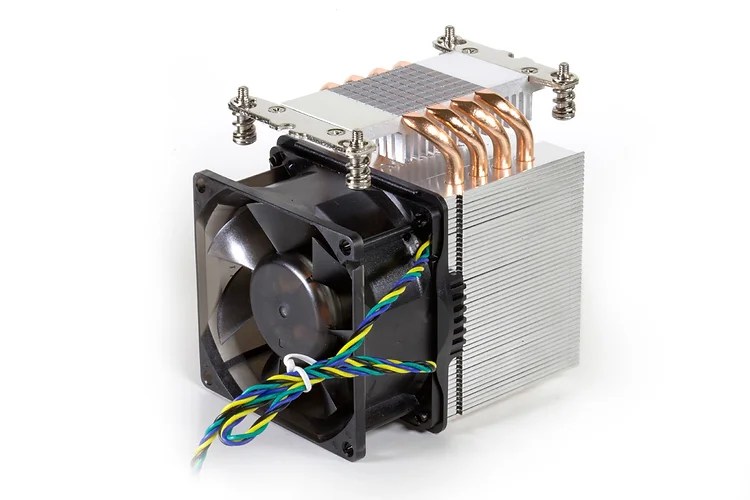

R27
CPU SUPPORT
Intel
CPU SOCKET
LGA2011/2066/NARROW
APPLICATION
3U & UP
MAXIMUM POWER
165W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 2011/2066 (Narrow Type, 56mm x 95mm Mounting Pitch) |
| Screw Type | M4 |
| Installation Torque | 10-16 in-lb |
| Solution | 3U Server and up, Workstation |
| Dimensions | 112.0 x 82.0 x 110.0 mm |
| Weight | 550 g |

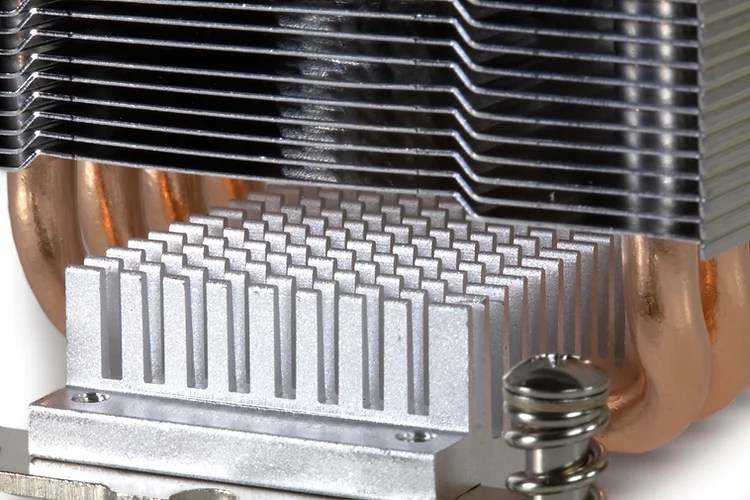

| Material | Aluminum Fins, 4x Heat Pipes with H.C.C. Technology |
| Fan Dimension | 80 x 80 x 38 mm |
| Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 2000 RPM At Duty Cycle 100%: 3800 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 2.2 W At Duty Cycle 50%: 3.6 W At Duty Cycle 100%: 7.9 W |
| Air Flow | At Duty Cycle 20%: 13.8 CFM At Duty Cycle 50%: 30.78 CFM At Duty Cycle 100%: 65.4 CFM |
| Noise Level | At Duty Cycle 20%: 16.0 dBA At Duty Cycle 50%: 31.5 dBA At Duty Cycle 100%: 43.4 dBA |
| Air Pressure | At Duty Cycle 20%: 0.42 mm-H2O At Duty Cycle 50%: 2.45 mm-H2O At Duty Cycle 100%: 9.75 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life- Continuous operating
under normal temperature (40°C/104 °F) |
70,000 Hours |
