Air cooling
You are here:

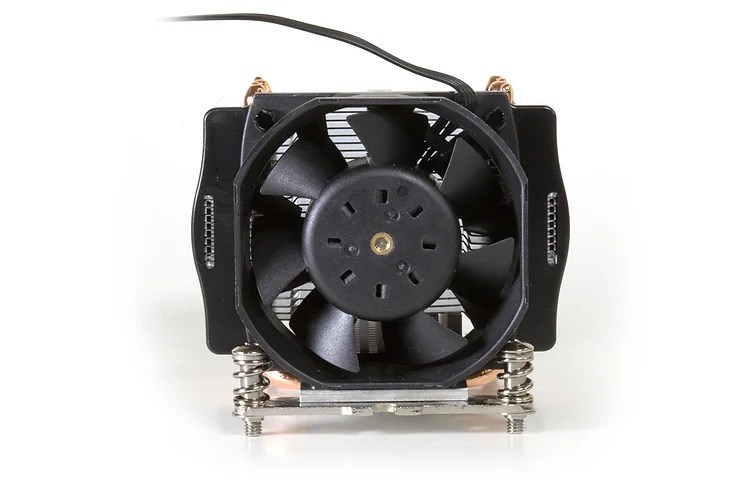

R24
CPU SUPPORT
Intel
CPU SOCKET
LGA2011/2066/NARROW
APPLICATION
2U
MAXIMUM POWER
165W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 2011 (Narrow Type, 56mm x 95mm Mounting Pitch) |
| Screw Type | M4 |
| Installation Torque | 10-16 in-lb |
| Solution | 2U Server and Up |
| Dimensions | 112.0 x 84.0 x 67.0 mm |
| Weight | 400 g |

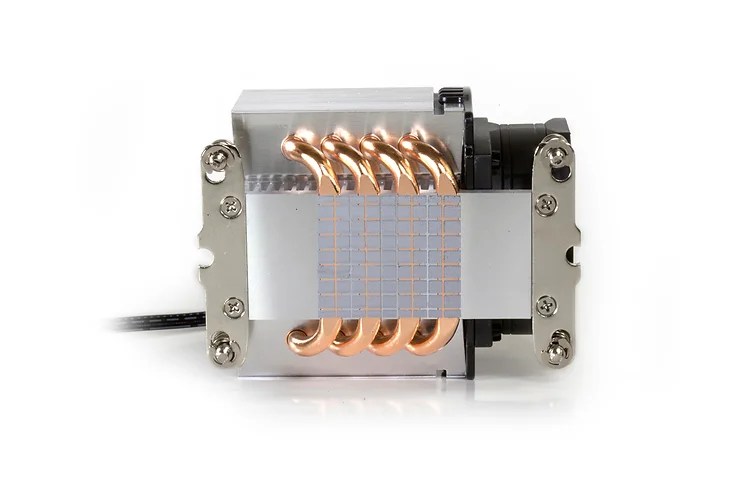

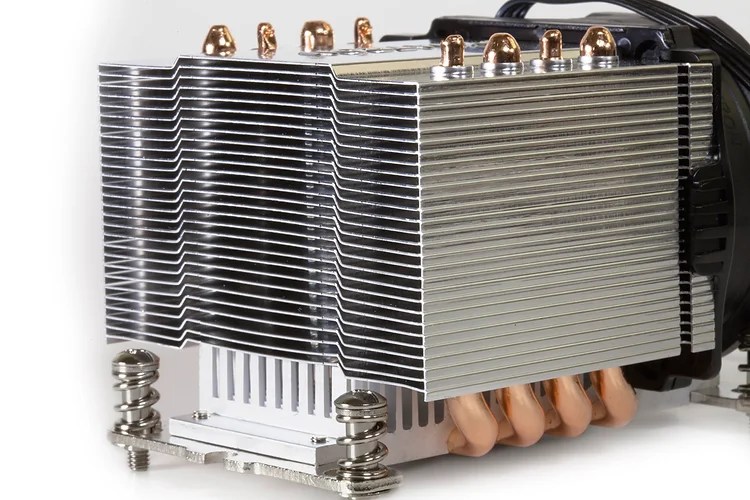

| Material | Aluminum Stacked Fin with Heatpipes Directly Contacting CPU |
| Fan Dimension | 60 x 60 x 28 mm |
| Speed | At Duty Cycle 20%: 1300±300 RPM At Duty Cycle 50%: 3500±10% RPM At Duty Cycle 100%: 7000±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 0.60 W At Duty Cycle 50%: 1.68 W At Duty Cycle 100%: 9.60 W |
| Air Flow | At Duty Cycle 20%: 8.10 CFM At Duty Cycle 50%: 20.26 CFM At Duty Cycle 100%: 40.53 CFM |
| Noise Level | At Duty Cycle 20%: 17.0 dBA At Duty Cycle 50%: 31.9 dBA At Duty Cycle 100%: 51.2 dBA |
| Air Pressure | At Duty Cycle 20%: 0.57 mm-H2O At Duty Cycle 50%: 3.57 mm-H2O At Duty Cycle 100%: 14.30 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life- Continuous operating
under normal temperature (40°C/104 °F) |
70,000 Hours |
