Air cooling
You are here:
P985
CPU SUPPORT
Intel
CPU SOCKET
LGA775
APPLICATION
3U & UP
MAXIMUM POWER
95W
Additional Information
| CPU Support | Intel |
|---|---|
| CPU Socket | LGA 775 |
| Solution | 3U Server and Up |
| Dimensions | 106.0 x 106.0 x 72.6 mm |
| Weight | 500 g |

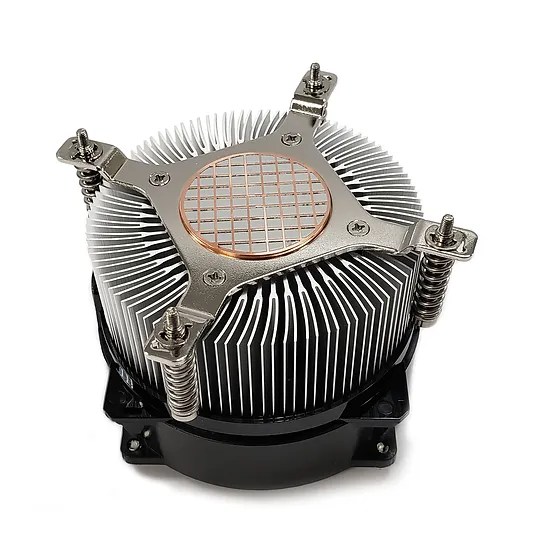

| Material | Aluminum Extruded Radial Heatsink with Copper Core |
| Fan Dimension | 92 x 25 mm |
| Speed | At Duty Cycle 20%: 1200 RPM At Duty Cycle 50%: 1500 RPM At Duty Cycle 100%: 2800 RPM |
| Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 3.60 W |
| Air Flow | At Duty Cycle 20%: 21.43 CFM At Duty Cycle 50%: 26.79 CFM At Duty Cycle 100%: 49.99 CFM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Noise Level | At Duty Cycle 20%: 16.08 dBA At Duty Cycle 50%: 20.93 dBA At Duty Cycle 100%: 34.48 dBA |
| Air Pressure | At Duty Cycle 20%: 0.686 mm-H2O At Duty Cycle 50%: 1.07 mm-H2O At Duty Cycle 100%: 3.74 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
