Air cooling
You are here:

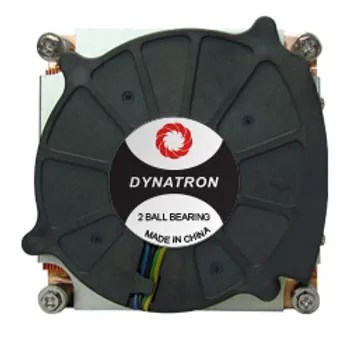

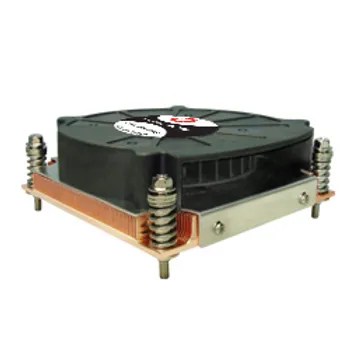

P199
CPU SUPPORT
Intel
CPU SOCKET
LGA775
APPLICATION
1U
MAXIMUM POWER
130W
Additional Information
| CPU Support | Intel |
|---|---|
| CPU Socket | LGA 775 |
| Solution | 1U |
| Dimensions | 83.0 mm x 81.0mm x 28.4mm |
| Weight | 350g ±5g |
| Material | Copper Zipped(Stacked) Heatsink, Plastic Blower |
| Fan Dimension | 80.0mm x 80.0mm x 15.5mm |
| Speed | 5000±10% RPM |
| Power | |
| Air Flow | 14.72 CFM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Noise Level | 51.7 dBA |
| Air Pressure | |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
