N6
CPU SUPPORT
Intel
CPU SOCKET
FCLGA4189-4/5(Socket P4/P5)
APPLICATION
3U, Workstations
MAXIMUM POWER
270 W
* For Intel® 3rd Gen. Xeon Scalable Processor(code name Copper Lake, Socket LGA4189-5), DY-PK-4189-P5 Package Carrier needs to purchase separately.
Additional Information
CPU Support | Intel® 3rd Gen. Xeon Scalable Processor (code name Ice Lake and Copper Lake) |
CPU Socket | FCLGA 4189-4/5(Socket P4/P5) |
Screw Type | #8-32 |
Installation Torque | 8 in-lb |
Solution | 3U Server and Up |
Dimensions | 128 x 91 x 110 mm |
Weight | 600 g |

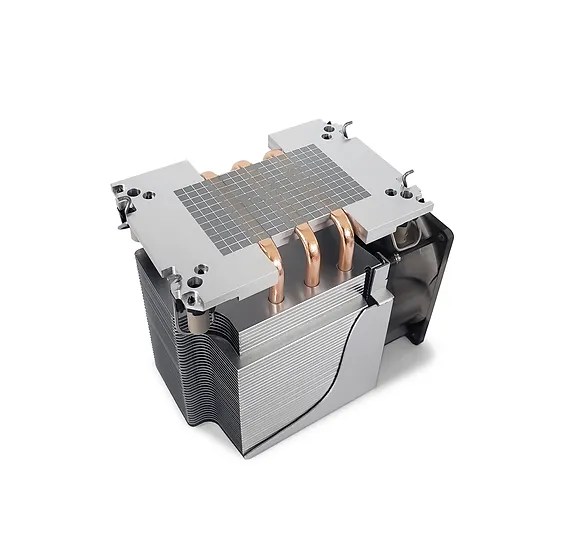

Material | Aluminum Stacked-fin with Heat Pipes directly contact CPU |
Fan Dimension | 80 x 38 mm |
Speed | At Duty Cycle 0~20%: 800 ± 200 RPM At Duty Cycle 50%: 1500 ± 10% RPM At Duty Cycle 100%: 3000 ± 10% RPM |
Rated Voltage | 12V |
Bearing | 2 Ball Bearing |
Power | At Duty Cycle 0~20%: 0.48 W At Duty Cycle 50%: 0.84 W At Duty Cycle 100%: 2.88 W |
Air Flow | At Duty Cycle 0~20%: 13.67 CFM At Duty Cycle 50%: 25.63 CFM At Duty Cycle 100%: 51.26 CFM |
Noise Level | At Duty Cycle 0~20%: 13.45 dBA At Duty Cycle 50%: 27.1 dBA At Duty Cycle 100%: 42.15 dBA |
Air Pressure | At Duty Cycle 0~20%: 0.402 mm-H2O At Duty Cycle 50%: 1.41 mm-H2O At Duty Cycle 100%: 5.66 mm-H2O |
Lead Wire Pin Out | Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
Thermal Grease | Shin-Etsu 7762 or Equivalent |
Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
How to install Dynatron Cooler on Intel socket LGA 4189 or LGA4677
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
