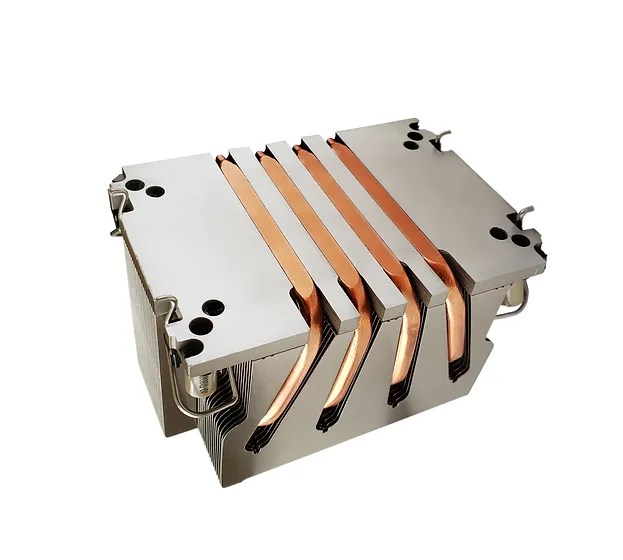

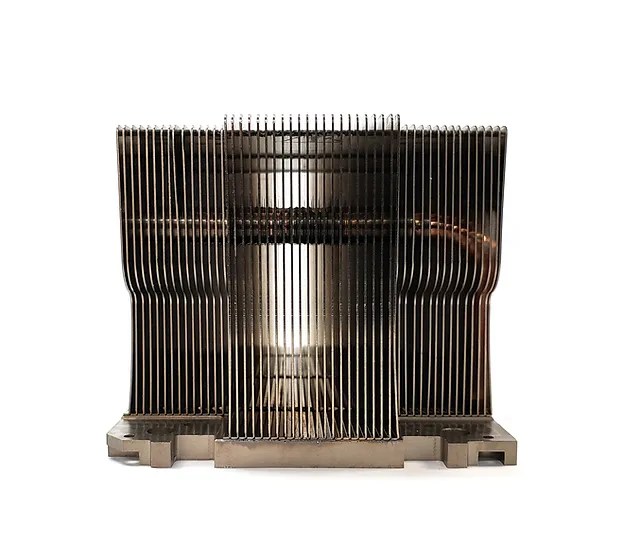

N2
CPU SUPPORT
Intel
CPU SOCKET
FCLGA4189-4/5(Socket P4/P5)
APPLICATION
2U
MAXIMUM POWER
270 W
* For Intel® 3rd Gen. Xeon Scalable Processor(code name Copper Lake, Socket LGA4189-5), DY-PK-4189-P5 Package Carrier needs to purchase separately.
Additional Information
CPU Support | Intel® 3rd Gen. Xeon Scalable Processor (code name Ice Lake and Copper Lake) |
CPU Socket | FCLGA 4189-4/5(Socket P4/P5) |
Screw Type | #8-32 |
Installation Torque | 8 in-lb |
Solution | 2U Server and up |
Dimensions | 113 x 78 x 64 mm |
Weight | 460 g |
Material | Aluminum for both heat sink Base and Fin Stack |
Thermal Grease | Shin-Etsu 7762 or Equivalent |
Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |

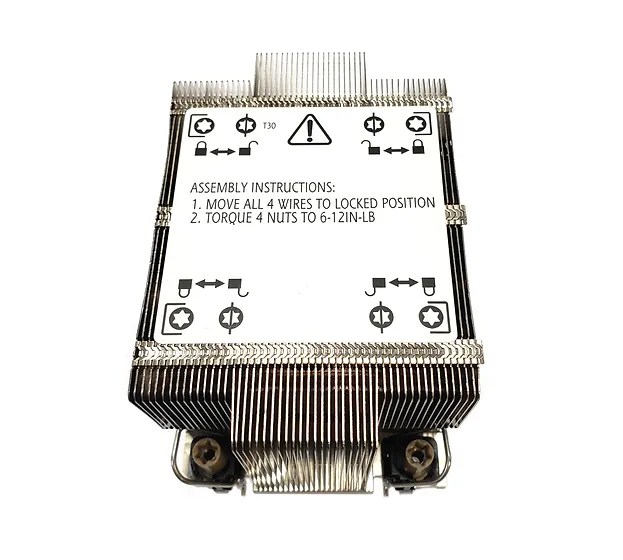

How to install Dynatron Cooler on Intel socket LGA 4189 or LGA4677
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
