Air cooling
You are here:
K650
CPU SUPPORT
Intel
CPU SOCKET
LGA1200/115X
APPLICATION
2U
MAXIMUM POWER
125W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 115X/1200 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Weight | 460 g |

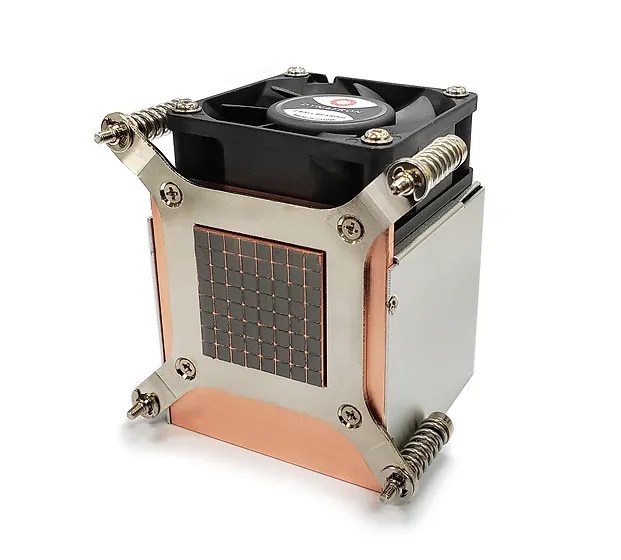

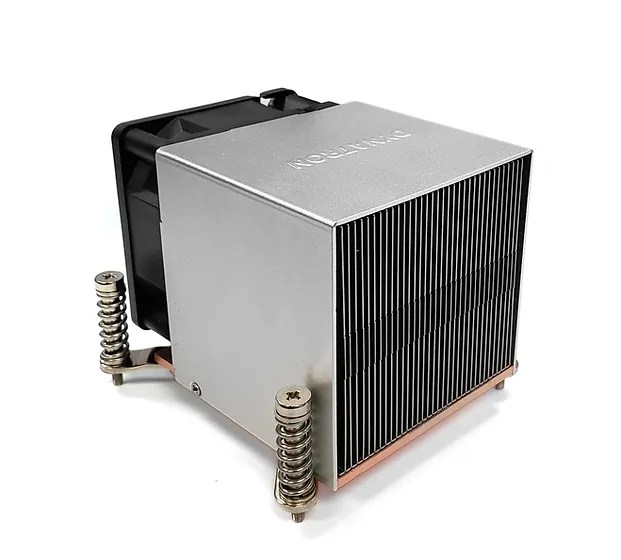

| Material | Copper Base with Aluminum Stacked Fin |
| Solution | 2U Server and Up |
| Dimensions | 88.5 x 87.0 x 64.0 mm |
| Fan Dimension | 60 x 60 x 25 mm |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Speed | At Duty Cycle 20%: 1400 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM |
| Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 1.20 W At Duty Cycle 100%: 5.4 W |
| Air Flow | At Duty Cycle 20%: 7.405 CFM At Duty Cycle 50%: 18.517 CFM At Duty Cycle 100%: 38.283 CFM |
| Noise Level | At Duty Cycle 20%: 20.8 dBA At Duty Cycle 50%: 35.9 dBA At Duty Cycle 100%: 48.1 dBA |
| Air Pressure | At Duty Cycle 20%: 0.574 mm-H2O At Duty Cycle 50%: 3.586 mm-H2O At Duty Cycle 100%: 13.552 mm-H2O |
| Lead Wir Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
