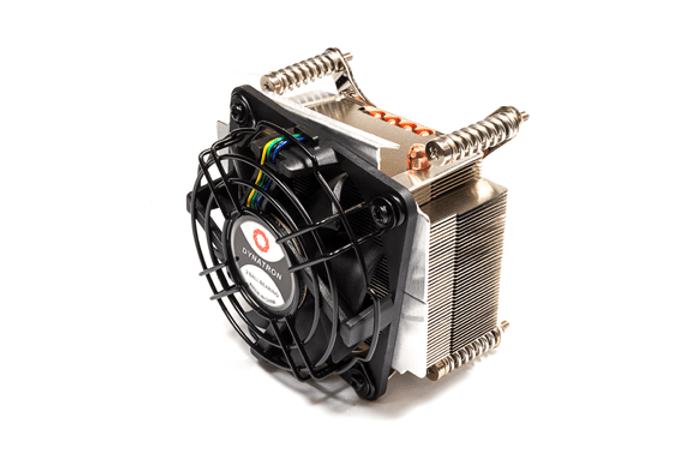

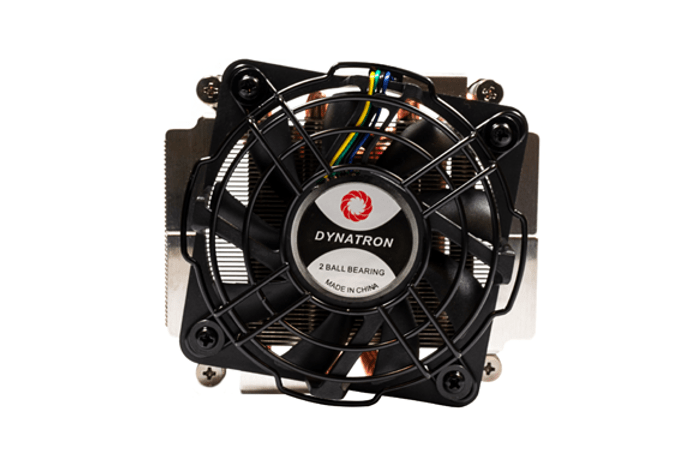

K555
CPU SUPPORT
Intel
CPU SOCKET
LGA1200/115X
APPLICATION
2U
MAXIMUM POWER
125W
Additional Information
| CPU Support | Intel® |
| CPU Socket | LGA115X/LGA1200 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | 2U Server & Up |
| Dimensions | 94.0 x 87.5 x 67.7mm |
| Weight | 460g ± 5g |
| Material | Copper Base & Aluminum Fins with Heat pipes embedded |
| Fan Dimension | 77 x 77 x 20mm |
| Speed | At Duty Cycle 0~20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM At Duty Cycle 100%: 4500 RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power | At Duty Cycle 0~20%: 0.84 W At Duty Cycle 50%: 1.44 W At Duty Cycle 100%: 6.0 W |
| Air Flow | At Duty Cycle 0~20%: 10.12 CFM At Duty Cycle 50%: 25.30 CFM At Duty Cycle 100%: 45.56 CFM |
| Noise Level | At Duty Cycle 0~20%: 13.14 dBA At Duty Cycle 50%: 33.04 dBA At Duty Cycle 100%: 45.8 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.185mm-H2O At Duty Cycle 50%: 1.156mm-H2O At Duty Cycle 100%: 3.746mm-H2O |
| Lead Wire Pin Out | Lead Wire Pin Out Pin1- Black(-) Pin2- Yellow(+) Pin3- Green(Techometer/Signal output) Pin4- Blue(PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
