Air cooling
You are here:

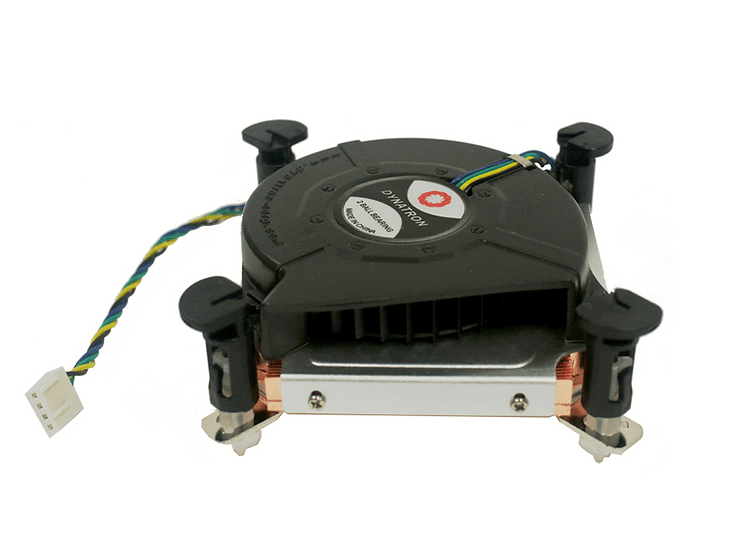

K2
CPU SUPPORT
Intel
CPU SOCKET
LGA1200/115X
APPLICATION
1U
MAXIMUM POWER
125W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA115X/1200 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | mini-ITX |
| Dimensions | 82.6 x 81.0 x 27.8 mm |
| Weight | 380 g |
| Material | Copper Heatsink |
| Fan Dimension | 75 x 15 mm |
| Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 2500 RPM At Duty Cycle 100%: 4000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 1.8 W At Duty Cycle 100%: 4.8 W |
| Air Flow | At Duty Cycle 20%: 6.0 CFM At Duty Cycle 50%: 8.3 CFM At Duty Cycle 100%: 11.9 CFM |
| Noise Level | At Duty Cycle 20%: 21.0 dBA At Duty Cycle 50%: 37.8 dBA At Duty Cycle 100%: 44.0 dBA |
| Air Pressure | At Duty Cycle 20%: 0.087 inch-H2O At Duty Cycle 50%: 0.453 inch-H2O At Duty Cycle 100%: 0.929 inch-H2O |
| Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
