Air cooling
You are here:

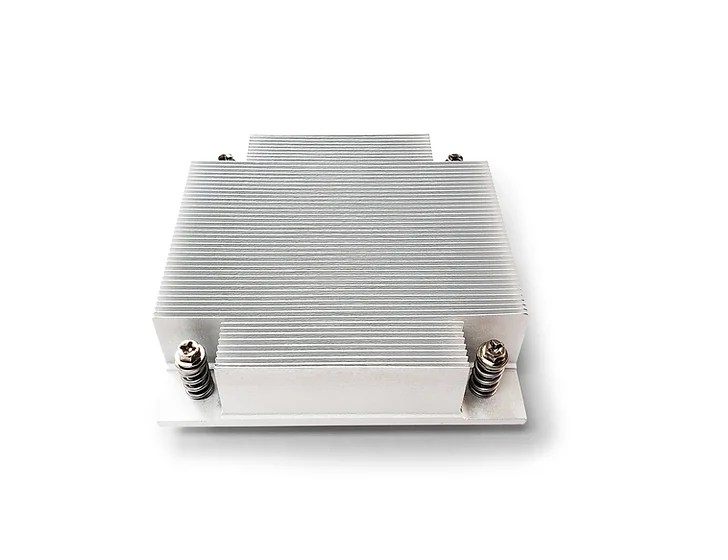

K1
CPU SUPPORT
Intel
CPU SOCKET
LGA1200/115X
APPLICATION
1U
MAXIMUM POWER
85 W
– Recommend for Intel® Core™ i5 I5-750; Xeon® Processor 3400 Series; Core™ i7 Processors, I7-870 & I7-860
Additional Information
| CPU Support | Intel |
| CPU Socket | 1156, Core i3 530/ 540, Core i5 650/ 660/ 661/ 670/ 750; Xeon Processor 3400 Series; Core i7 870 / 860 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | 1U |
| Dimensions | 95.0 x 95.0 x 26.5 mm |
| Weight | 300 g |
| Material | Aluminum Skived Fin |

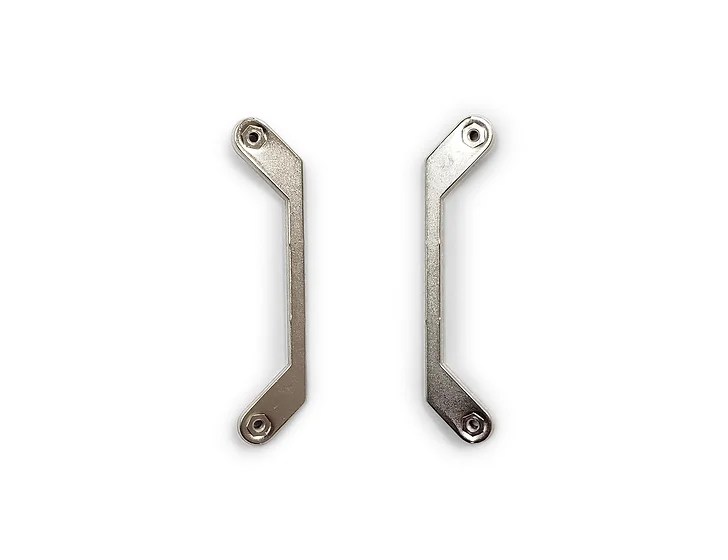

| Backplate | Back Strip is Included |
| Thermal Grease | Thermal Grease Pre-Printed with GE-Toshiba TIG830SP |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
