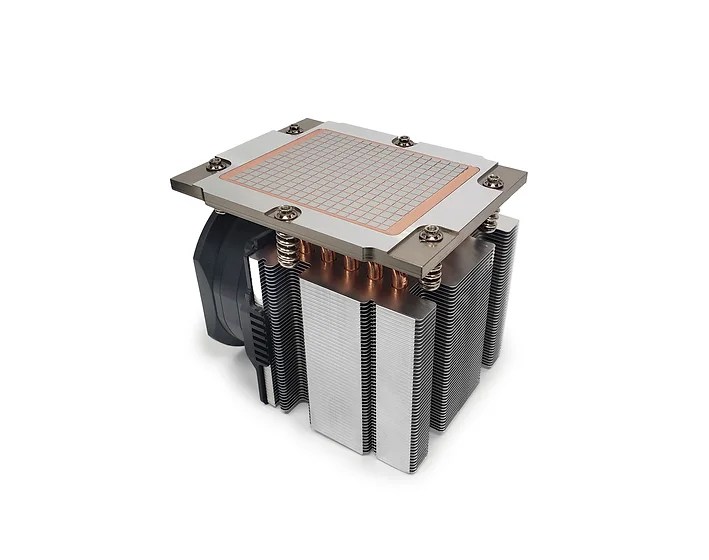

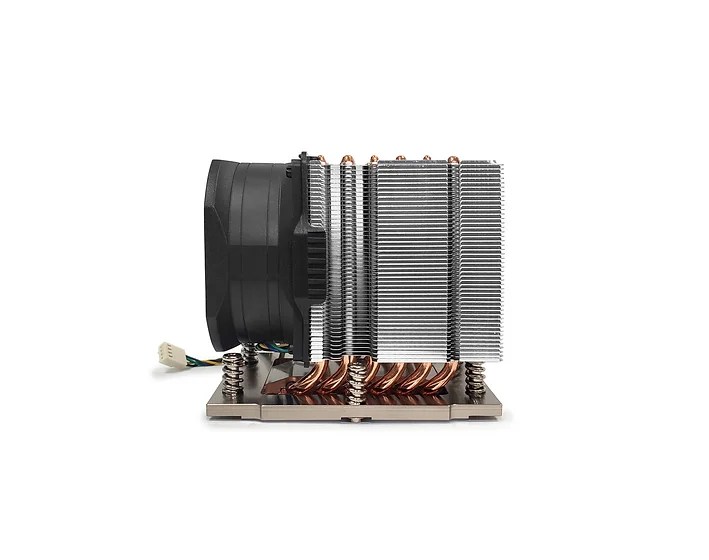

Air cooling
You are here:
J12
CPU SUPPORT
AMD
CPU SOCKET
SP5
APPLICATION
3U & UP
MAXIMUM POWER
320 W
Additional Information
| CPU Support | AMD® |
| CPU Socket | Genoa®, Socket SP5 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 3U Server and Up |
| Dimensions | 118.0 x 92.4 x 105.0 mm |
| Weight | 798 g |
| Material | Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Aluminum Heatsink Base |

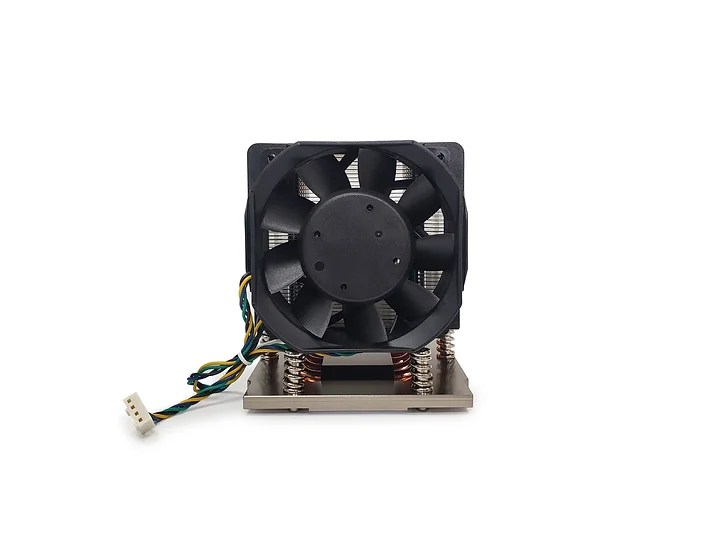

| Fan Dimension | 80 x 80 x 38 mm |
| Speed | At Duty Cycle 20%: 2400 ± 200 RPM At Duty Cycle 50%: 4800 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM |
| Rated Voltage | 12V |
| Bearing | Double Ball |
| Power | At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Air Flow | At Duty Cycle 0~20%: 32.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Noise Level | At Duty Cycle 20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA |
| Air Pressure | At Duty Cycle 20%: 1.39 mm-H2O At Duty Cycle 50%: 5.97 mm-H2O At Duty Cycle 100%: 34.06 mm-H2O |
| Lead Wire Pin Out | Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
