Air cooling
You are here:

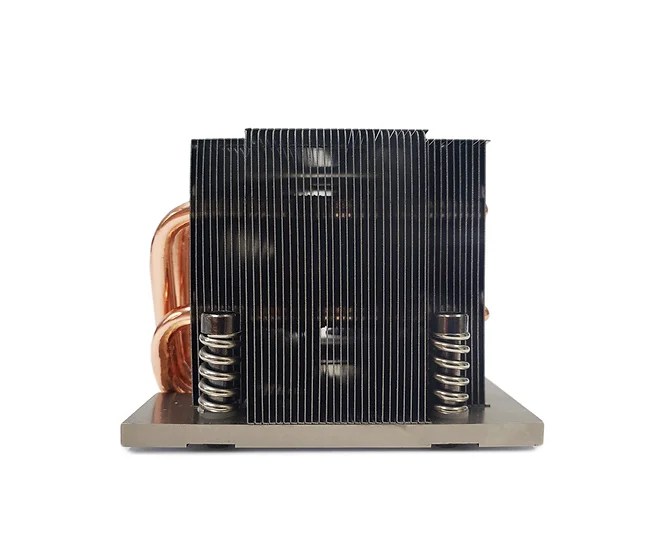

J10
CPU SUPPORT
AMD
CPU SOCKET
SP5
APPLICATION
2U
MAXIMUM POWER
320 W
Additional Information
| CPU Support | AMD |
| CPU Socket | Genoa®, Socket SP5 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 2U Server and Up |
| Dimensions | 118 x 92.4 x 65 mm |
| Weight | 510 g |

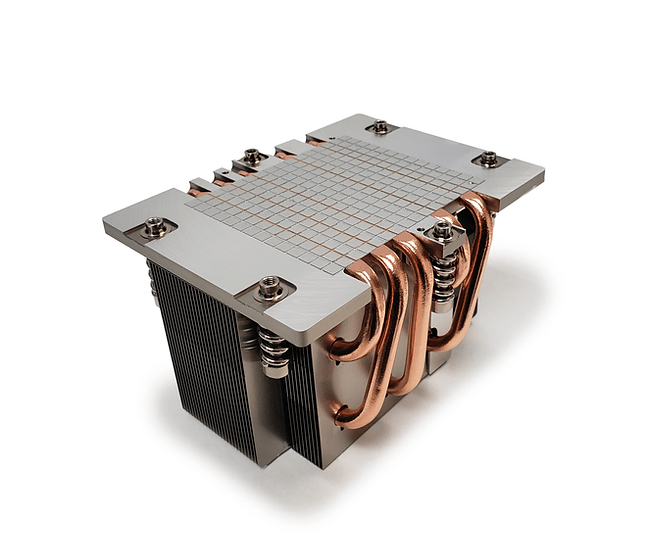

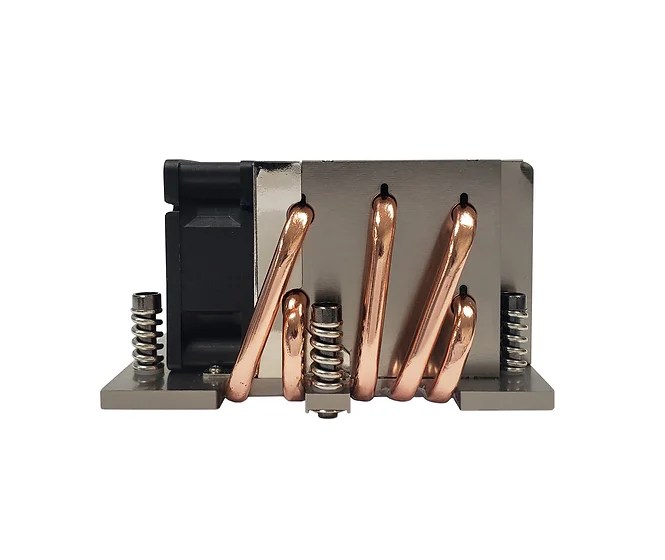

| Material | 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack |

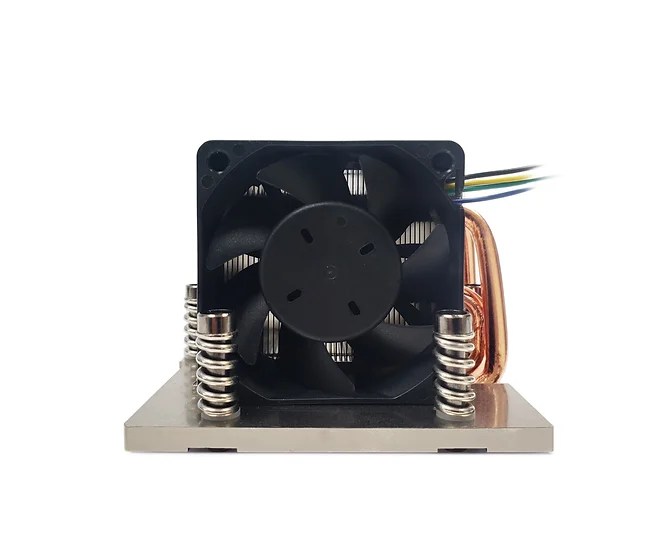

| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 0~20%: 2300± 200 RPM
At Duty Cycle 50%: 5400± 10% RPM At Duty Cycle 100%: 11000±10% RPM |
| Rated Voltage | 12V |
| Bearing | Double Ball |
| Power | At Duty Cycle 0~20%: 0.84 W
At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
| Air Flow | At Duty Cycle 0~20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
| Noise Level | At Duty Cycle 0~20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
| Air Pressure | At Duty Cycle 0~20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O At Duty Cycle 100%: 28.8 mm-H2O |
| Lead Wire Pin Out | Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
