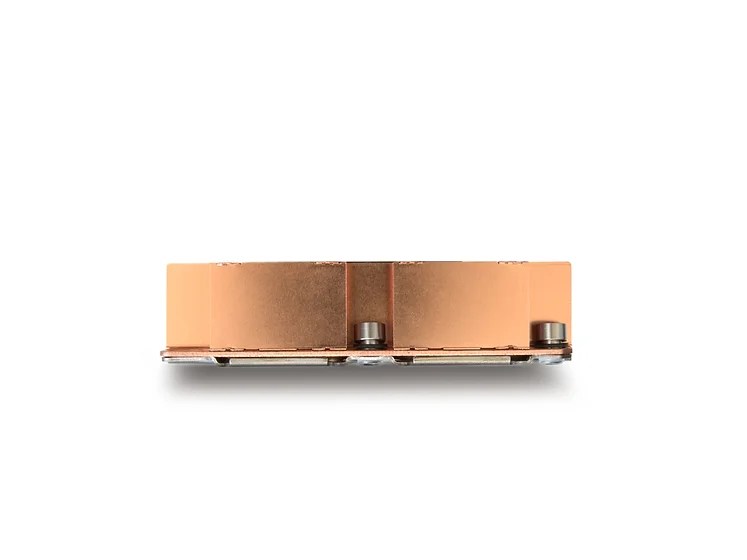

Air cooling
You are here:
B4A
CPU SUPPORT
Intel
CPU SOCKET
LGA3647/NARROW
APPLICATION
1U
MAXIMUM POWER
205W
Additional Information
| CPU Support | Intel |
| CPU Socket | FCLGA 3647 Narrow ILM |
| Screw Type | M4 |
| Installation Torque | 12 in-lb |
| Solution | 1U Server and Up |
| Dimensions | 108.0 x 81.0 x 27.0 mm |
| Weight | 480 g |

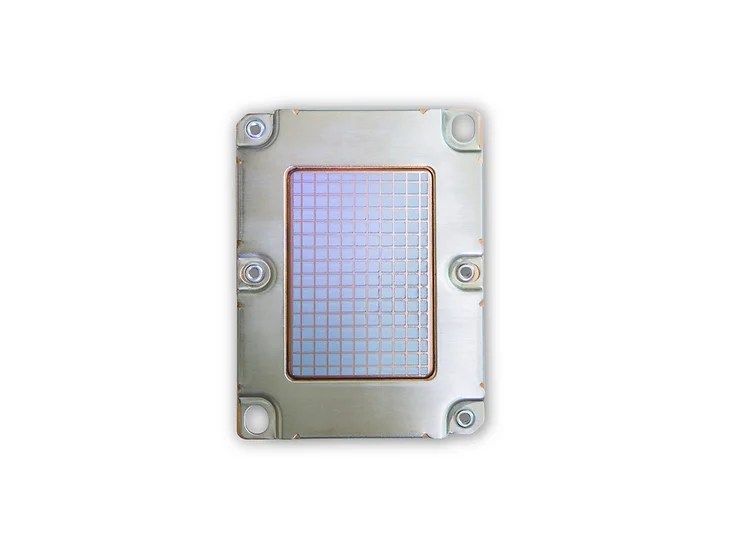

| Material | Copper1100 Stacked Fin Heatsink with Vapor Chamber Base |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
