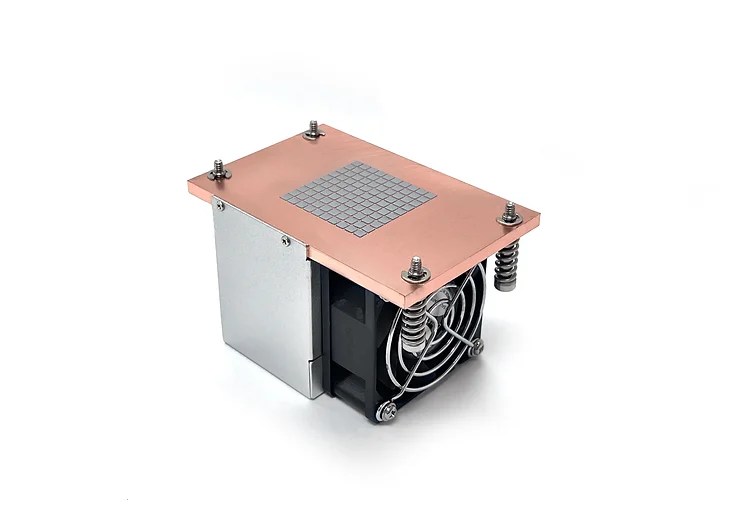

A27G
CPU SUPPORT
AMD
CPU SOCKET
AM2
APPLICATION
2U
MAXIMUM POWER
125W
Additional Information
| CPU Support | AMD |
| CPU Socket | AM2 |
| Solution | 2U Server and Up |
| Dimensions | 106.0mm x 73.0mm x 66.0mm |
| Weight | 750 ±5g |
| Material | Copper Heatsink |
| Fan Dimension | 60 x 60 x 25mm |
| Rated Speed | 7000± 5% RPM |
| Bearing | 2 x Ball |
| Rated Voltage | DC12V |
| Maximum Airflow | 37.58 CFM |
| Acoustical Noise | 46.8 dBA |
| Lead Wire Pin Out | Pin#1 – Black (-) Pin#2 – Red (+) Pin#3 – White (Tachometer / Signal output ) |
