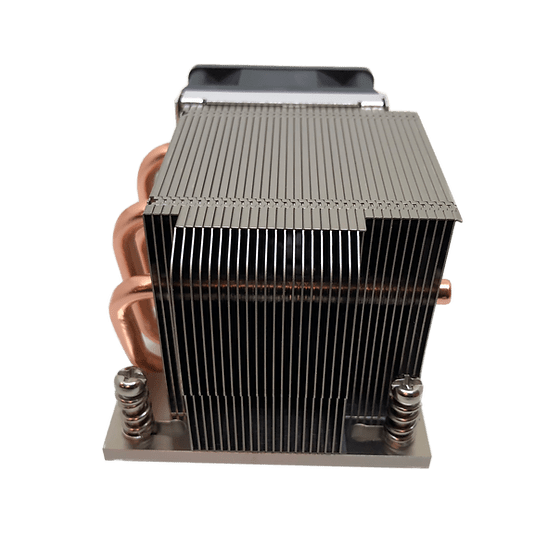

Air cooling
You are here:
A26
CPU SUPPORT
AMD
CPU SOCKET
sWRX8/sTRX4/TR4/SP3
APPLICATION
2U
MAXIMUM POWER
280W
Additional Information
CPU Support | AMD |
CPU Socket | sWRX8/sTRX4/TR4/SP3 |
Screw Type | M3.5 |
Installation Torque | 12.5-15.1 in-lb |
Solution | 2U Server and Up |
Dimensions | 119.0 x 79.0 x 65.0 mm |
Weight | 450g |
Material | Aluminum Heatsink with Heatpipe Embedded |
Fan Dimension | 60 x 60 x 25 mm |
Speed | At Duty Cycle 20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM |
Power | At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.2 W |
Bearing | Ball Type, Double |
Rated Voltage | 12V |
Air Flow | At Duty Cycle 20%: 8.85 CFM At Duty Cycle 50%: 21.88 CFM At Duty Cycle 100%: 43.75 CFM |
Noise Level | At Duty Cycle 20%: 18 dBA At Duty Cycle 50%: 37.9 dBA At Duty Cycle 100%: 53 dBA |
Air Pressure | At Duty Cycle 20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O |
Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
