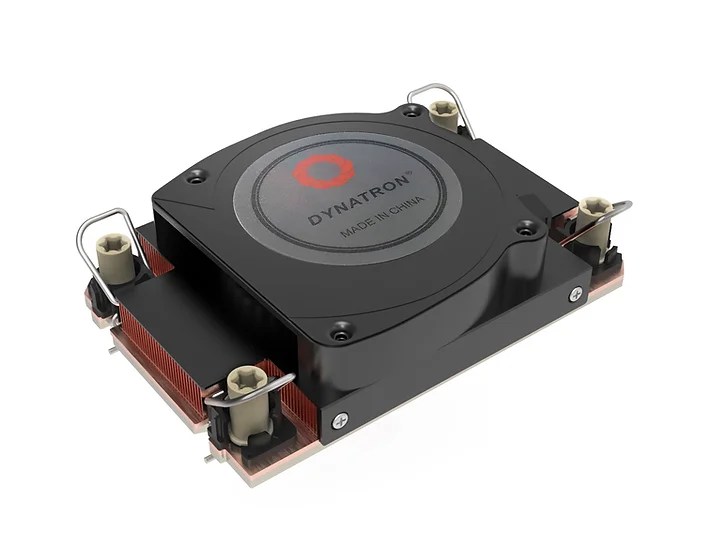

S7
CPU SUPPORT
Intel
CPU SOCKET
LGA4677
APPLICATION
1U
MAXIMUM POWER
205 W
Note:

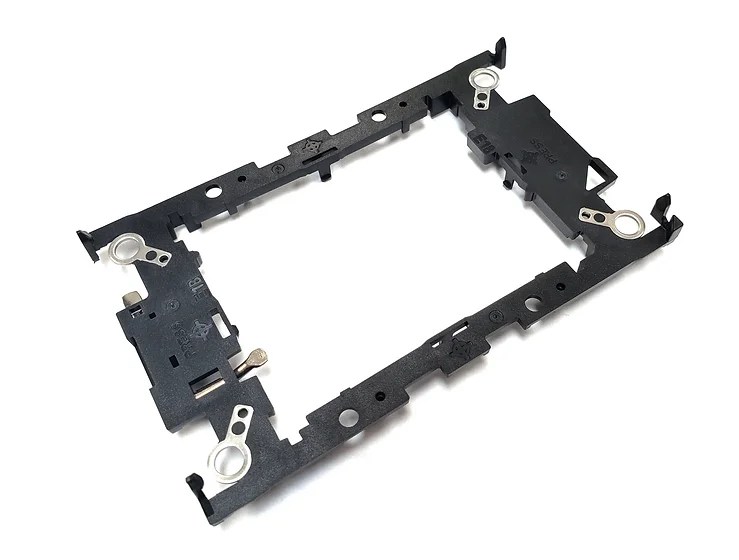

Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier. The E1C Package Carrier is not included but is available upon request.
To find out which Package Carrier corresponds to your processor, please visit the official Intel link for more information. Click here to see the guideline example.
Additional Information
| CPU Support | Intel |
| CPU Socket | FCLGA 4677 |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 1U Server and Up |
| Dimensions | 118.6 x 80.5 x 27.4 mm |
| Weight | 424.6 g |

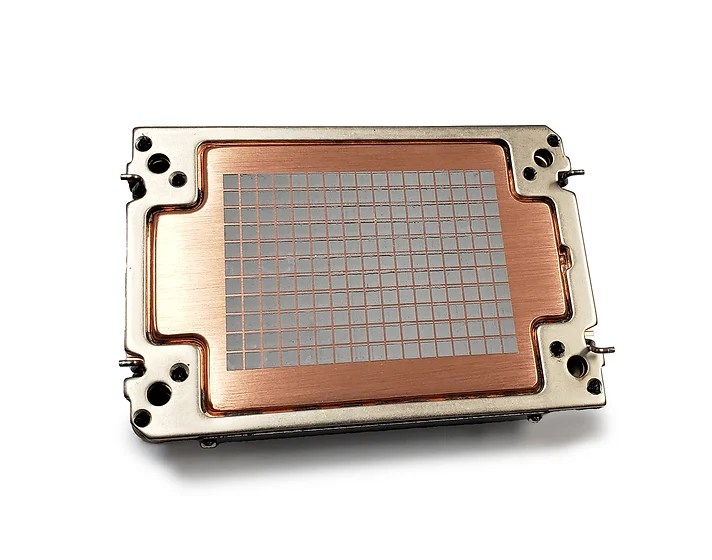

| Material | Copper 1100 Heatsink with Vapor Chamber Base |
| Fan Dimension | 80 x 13 mm |
| Speed | At Duty Cycle 0~20%: 1900 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM |
| Rated Voltage | 12V |
| Bearing | Double Ball |
| Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W |
| Air Flow | At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level | At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
| Air Pressure | At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O |
| Lead Wire Pin Out | Pin#1- (-)
Pin#2- (+) Pin#4- (PWM) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
