Air cooling
You are here:
R25
CPU SUPPORT
Intel
CPU SOCKET
LGA2011/2066/NARROW
APPLICATION
1U
MAXIMUM POWER
165W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 2066/2011 (Narrow Type, 56mm x 95mm Mounting Pitch) |
| Screw Type | M4 |
| Installation Torque | 10-16 in-lb |
| Solution | 1U Server |
| Dimensions | 106.0 x 84.0 x 27.5 mm |
| Weight | 470 g |

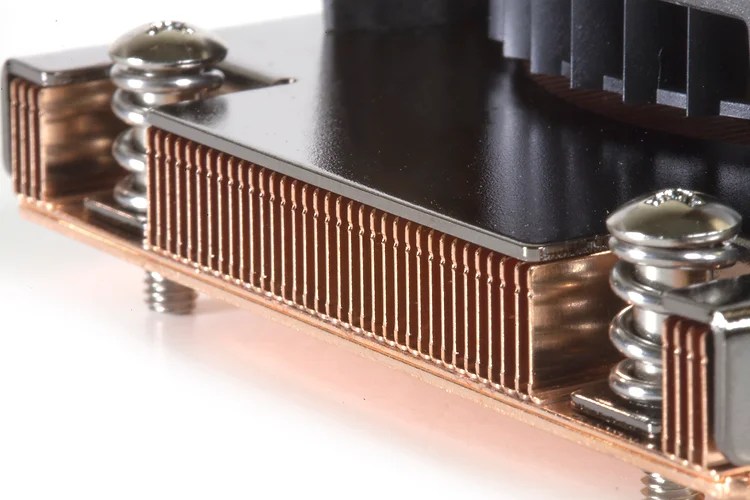

| Material | Copper Based Vapor Chamber Heatsink with Copper Stacked Fin |
| Fan Dimension | 80 x 80 x 15 mm |
| Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 W |
| Air Flow | At Duty Cycle 20%: 6.5 CFM At Duty Cycle 50%: 11.2 CFM At Duty Cycle 100%: 22.28 CFM |
| Noise Level | At Duty Cycle 20%: 21.5 dBA At Duty Cycle 50%: 43.0 dBA At Duty Cycle 100%: 59.14 dBA |
| Air Pressures | At Duty Cycle 20%: 2.27 mm-H2O At Duty Cycle 50%: 18.56 mm-H2O At Duty Cycle 100%: 74.18 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life- Continuous operating
under normal temperature (40°C/104 °F) |
70,000 Hours |
