Air cooling
You are here:
Q12
CPU SUPPORT
Intel
CPU SOCKET
LGA1851/1700
APPLICATION
3U & UP
MAXIMUM POWER
125 W
Additional Information
| CPU Support | Intel Core 12th -15th Gen |
| CPU Socket | LGA 1851/1700 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | 3U Server and Up |
| Dimensions | 106.0 x 106.0 x 72.6 mm |
| Weight | 480 g |

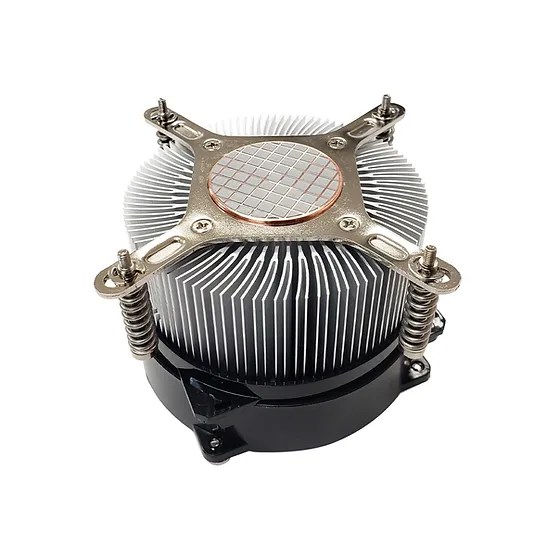

| Material | Aluminum Radial fin Heat Sink with Copper Core Inserted |

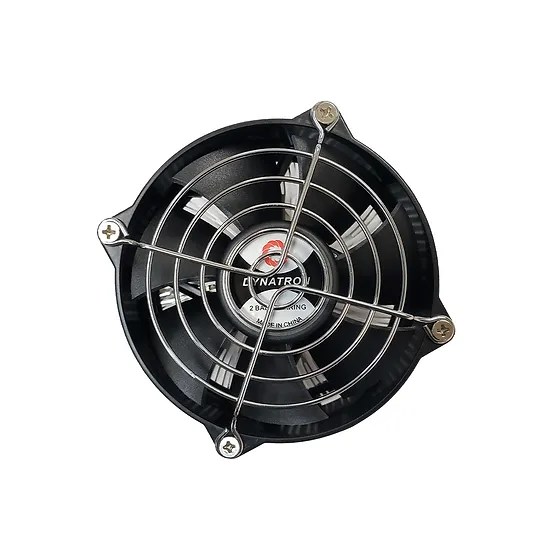

| Fan Dimension | Ø 92.0 x 25.0 mm |
| Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 1500 RPM At Duty Cycle 100%: 3000 RPM |
| Power | At Duty Cycle 20%: 0.60 W At Duty Cycle 50%: 1.20 W At Duty Cycle 100%: 3.00 W |
| Air Flow | At Duty Cycle 20%: 17.86 CFM At Duty Cycle 50%: 26.79 CFM At Duty Cycle 100%: 53.57 CFM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Noise Level | At Duty Cycle 20%: 16.00 dBA At Duty Cycle 50%: 20.93 dBA At Duty Cycle 100%: 35.98 dBA |
| Air Pressure | At Duty Cycle 20%: 0.480 mm-H2O At Duty Cycle 50%: 1.070 mm-H2O At Duty Cycle 100%: 4.290 mm-H2O |
| Lead Wire Pin Out | Pin#1- Black(-)
Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
