Air cooling
You are here:
K785
CPU SUPPORT
Intel
CPU SOCKET
LGA1200/115X
APPLICATION
2U
MAXIMUM POWER
125W
Additional Information
| CPU Support | Intel |
| CPU Socket | LGA 115X/1200 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |

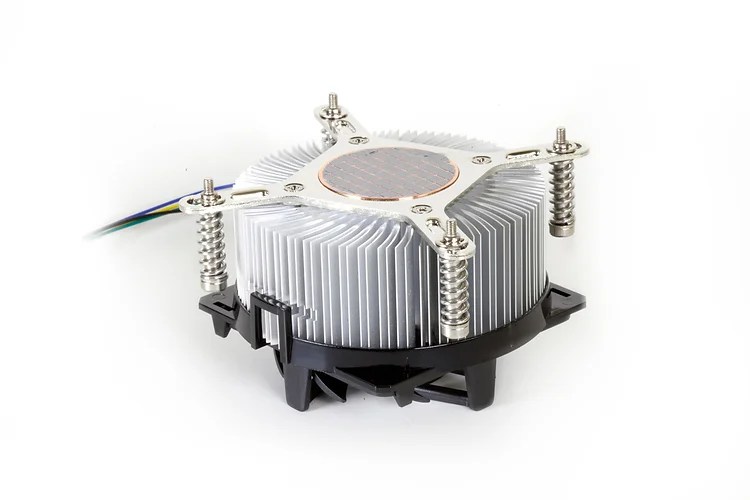

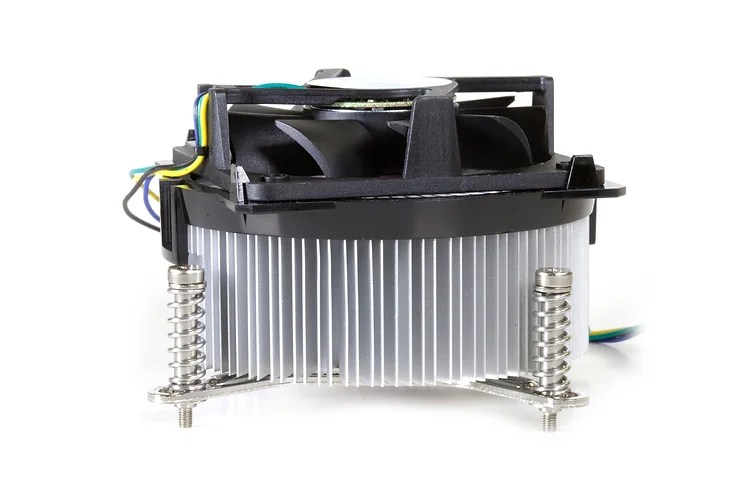

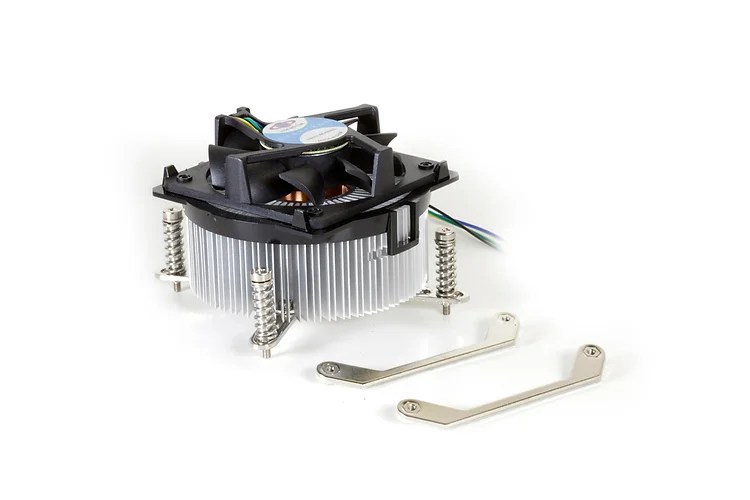

| Material | Aluminum Extruded Radial Heatsink with Copper Core |
| Solution | 2U Server and Up |
| Dimensions | 90.0 x 90.0 x 62.0 mm |

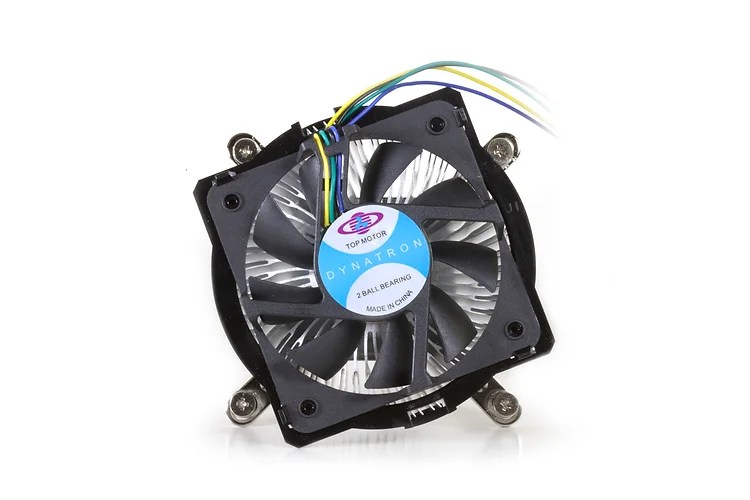

| Fan Dimension | 77 x 20 mm |
| Weight | 500 g |
| Speed | At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 2500 RPM At Duty Cycle 100%: 4500 RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power | At Duty Cycle 20%: 0.84 W At Duty Cycle 50%: 1.44 W At Duty Cycle 100%: 6.0 W |
| Air Flow | At Duty Cycle 20%: 10.12 CFM At Duty Cycle 50%: 25.30 CFM At Duty Cycle 100%: 45.56CFM |
| Air Pressure | At Duty Cycle 20%: 0.185 mm-H2O At Duty Cycle 50%: 1.156 mm-H2O At Duty Cycle 100%: 3.746 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*All product specifications and product images are subject to change without notice.
