Air cooling
You are here:
C4
CPU SUPPORT
Intel® Granite Rapid AP
CPU SOCKET
Intel Socket |
LGA 7529
APPLICATION
1U
MAXIMUM POWER
400 W
Additional Information
| CPU Support | Intel® Granite Rapid AP |
| CPU Socket | LGA 7529 |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 1U Server |
| Dimensions | 126.8 x 97.8 x 26.8 mm |
| Weight | 450 g |

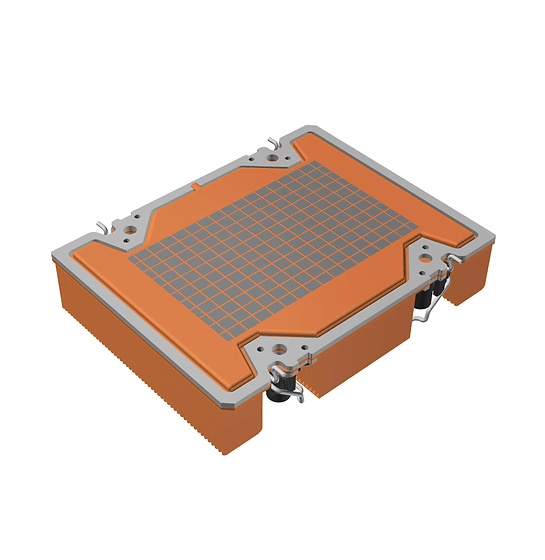

| Material | Copper fins with copper vapor chamber |
| Thermal Grease | Shin-Etsu X23-8079-2 |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
