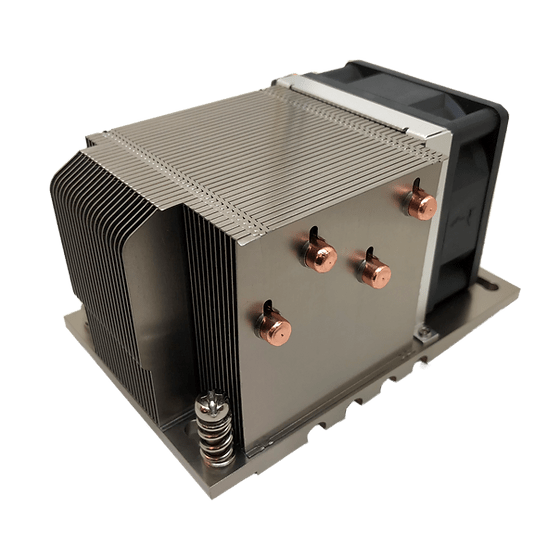

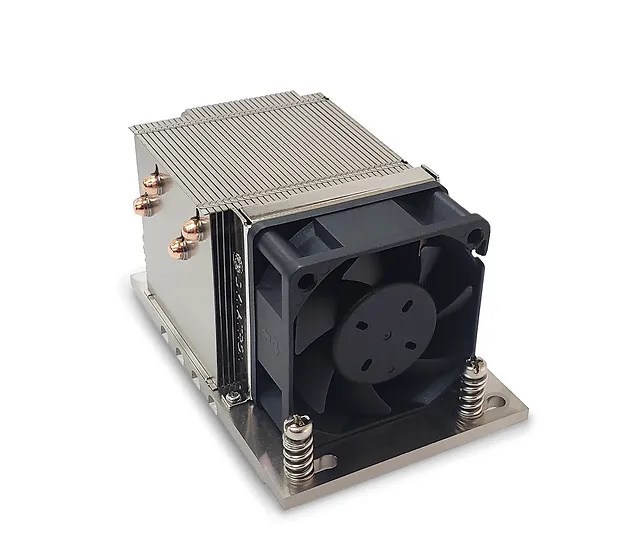

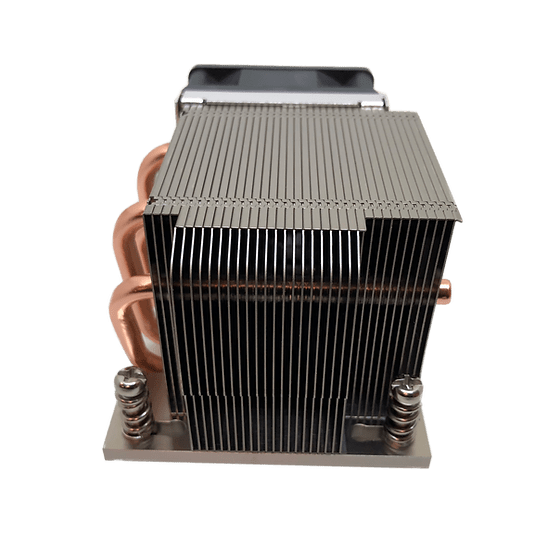

A38
CPU SUPPORT
AMD
CPU SOCKET
sWRX8/sTRX4/TR4/SP3
APPLICATION
2U
MAXIMUM POWER
280 W
Additional Information
| CPU Support | AMD |
| CPU Socket | sWRX8/sTRX4/TR4/SP3 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 2U Server and Up |
| Dimensions | 119.0 x 79.0 x 65.0 mm |
| Weight | 450g |
| Material | Aluminum Heatsink with Heatpipe Embedded |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 0~20%: 2300 ± 10% RPM At Duty Cycle 50%: 5400 ± 10% RPM At Duty Cycle 100%: 11000 ±10% RPM |
| Power | At Duty Cycle 0~20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
| Bearing | Ball Type, Double |
| Rated Voltage | 12V |
| Air Flow | At Duty Cycle 0~20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
| Noise Level | At Duty Cycle 0~20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
| Air Pressure | At Duty Cycle 0~20%: 1.48 mm-H2O At Duty Cycle 50%: 7.54 mm-H2O At Duty Cycle 100%: 28.8 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*Please refer to this installation method, if there any discrepancies or questions, please contact us!
